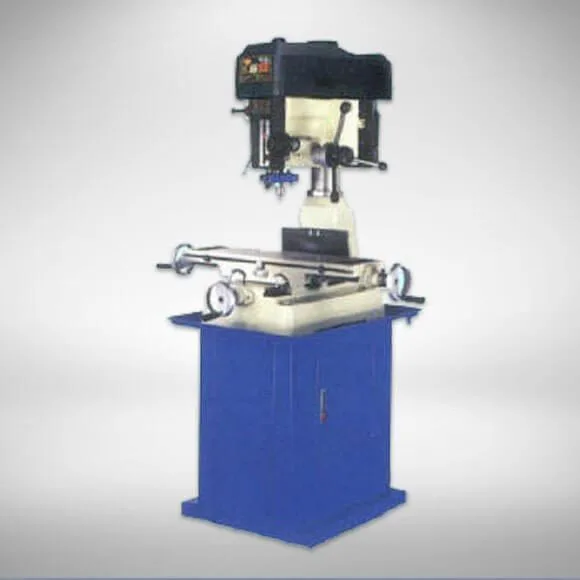

Acra RF 30/31 Step Pulley Drills
Have one to sell?
ConditionNew
1 available
New
Acra RF 30/31 Step Pulley Drills
SPECIFICATIONSWorking Capacity in Cast Iron: Drilling: 1 1/4"
Face Mill: 3"
End Mill: 25/32"
Tapping: 5/8"
Working Capacity In Mild Steel: 1 1/4"
Working Capacity In Light Alloy: 1 1/4"
Column Diameter: 4 1/2"
Spindle Taper: R-8
Spindle Stroke: 5 1/8"
Swing: 13 3/8"
Spindle RPM: 150~3000 RPM
Longitudinal Travel: 16 15/16"
Cross Travel: 7 9/32"
Main Motor: 2 HP
Voltage: 110/220V AC / 1 PH
Weight (Net/Shipping): 600 / 660 LBS
Dimension (L x W x H): 31 1/2" x 29" x 45"OPTIONAL ACCESSORIES:* Mill Stand
* Table Feed
* Clamp Kit
