Acra RF 40/40PF Drilling Machine

SPECIFICATIONS:Working Capacity In Cast Iron Drilling: 1 1/4"
Face Mill: 3 15/16"
End Mill: 25/32"
Tapping: 5/8"
Working Capacity In Mild Steel: 1 1/4"
Working Capacity In Light Alloy: 1 1/4"
Column Diameter: 4 1/2"
Spindle Taper: R-8
Spindle Stroke: 5"
Swing: 18 7/8"
Spindle RPM: 105~1820 RPM
Longitudinal Travel: 16 15/16"
Cross Travel: 9 1/16"
Main Motor: 1 HP
Voltage: 220/440V / 3 PH
Weight (Net/Shipping): 600 / 660 LBS
Dimension (L x W x H): 31 1/2" x 29" x 45"OPTIONAL ACCESSORIES:* Mill Stand
* Table Feed

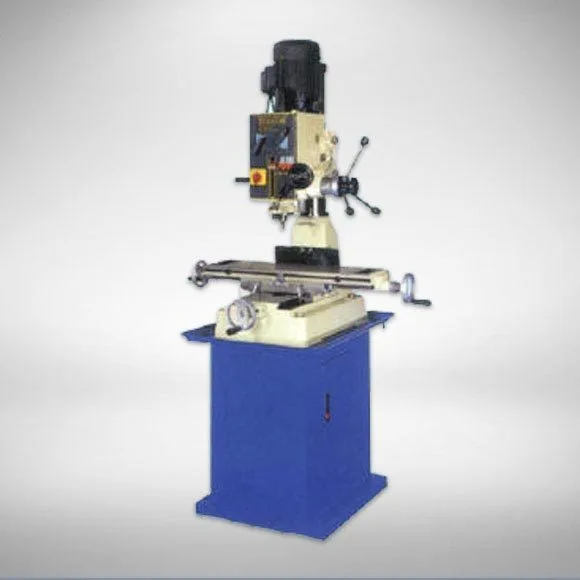

* Clamp Kit*RF 40 model shown
