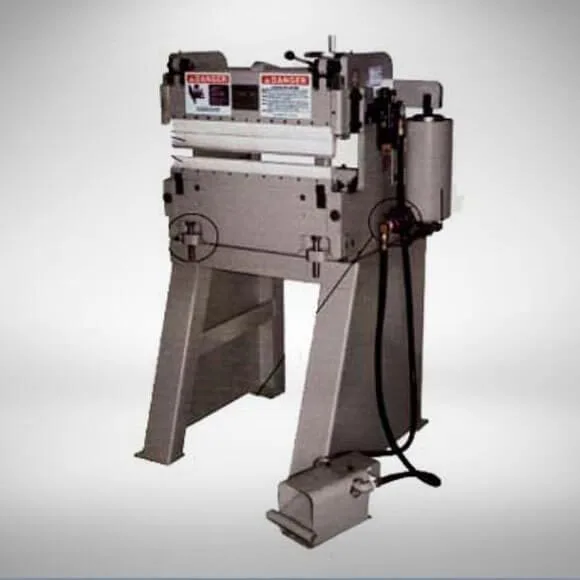

Atek Bantam 12-Ton Press Brakes

Model B212 (2 Foot Bed):
- Ram height 5-7/8"
- Bed width 24"
- Distance between housings 24.25"
- Approx. Dimensions (with optional stand) are 30" FB x 36" LR x 60" H
- Bending capacity in 60,000 PSI Mild Steel: 13 ga., 11 ga. to 21", 10 ga. to 18", 9 ga. to 16", 7 ga. to 13", 1/4" to 10", 5/16" to 8", 3/8" to 6", 1/2" to 3"

Model B412 (4 Foot Bed):
- Ram height 9-7/8"
- Bed width 48"
- Distance between housings 48.25"
- Bending capacity in 60,000 PSI Mild Steel: 18 ga., 16 ga. to 40", 14 ga. to 32", 13 ga. to 27", 11 ga. to 21", 10 ga. to 18", 9 ga. to 16", 7 ga. to 13", 1/4" to 10", 5/16" to 8", 3/8" to 6", 1/2" to 3"

Model B512 (5 Foot Bed):
- Ram height 13-7/8"
- Bed width 60"
- Distance between housings 60.25"
- Bending capacity in 60,000 PSI Mild Steel: 18 ga. to 51", 16 ga. to 40", 14 ga. to 32", 13 ga. to 27", 11 ga. to 21", 10 ga. to 18", 9 ga. to 16", 7 ga. to 13", 1/4" to 10", 5/16" to 8", 3/8" to 6", 1/2" to 3"

Standard Features on All 12-Ton Models:
- Ram stroke 0 to 1-7/8"
- Bed adjustment 2"
- Window depth x height 5-3/4 x 7-1/2"
- Bed and ram thickness 1.25"
- Back gauge depth 0 to 18"
- Full stroke free air 2.2 CFS
- Max. speed 30 SPM
- Two air cylinders push up a simple lever that pushes the ram down. Motion stops when a screw adjusted positive stop bottoms out.
- Foot pedal standard. Removing foot from pedal exhausts air and gravity retracts the counter-weight lever
- Unique 1/4" OSHA gap adjustable bed. Bed is vertically adjustable using leveling screws to accommodate various vee die heights, to parallel the bed to the ram and if possible, eliminate pinch point
- Select optimal speed with a tamper-proof ram speed valve. A minimum setting creates a creep mode for set-up, pressing or bending to scribe a line without affected generated force.
- Runs on compressed air (90 PSI provides rated tonnage, no 3 phase power required), uses from 10-110 PSI.
- Includes quiet long-life, steel reinforced cylinder bumpers Tooling space 8-7/8"
- Made in USA

Standard Accessories:
- 90 deg. Top punch and 3/4" Vee Die made of 4150 brake die steel
- Removable die holder, accepts American style tooling
- Complete modular adjustable Filter Regulator Module (w/pressure gauge) with OSHA lockout
- Safety hooded foot pedal with toe flip cover controls all ram motion (fully depress for down stroke, slight release to stop advance, complete release will retract to top of stroke thru counter-balance)
- Ram retracts for safety when air supply is removed
- Tamper-proof speed control valve
- Quick exhaust with muffler
- Manual back gauge with screw adjustable finger stops
- Atek Press Brake Tooling utilizes American-style, 4150 steel press brake tooling
