The X, Y and Z axis of BMT vertical milling machine are induction hardened, then surface ground and finally treated with Turcite-B® offering a longer and more precise life. 3KVS has “V” slideway for Z and Y axes; 4KVS and 6BVS has box “SQ” slideway for Z and Y axes. All three axes have a power feeds that are coupled to optional three axis DRO (digital read out). All three models are equipped with variable speed producing speeds as low as 70 up to 4200 RPM. Step speed models are available by requests. Like all BMT milling machines there is a lot of value in this model for a moderate investment that will offer the machinist decades of service.

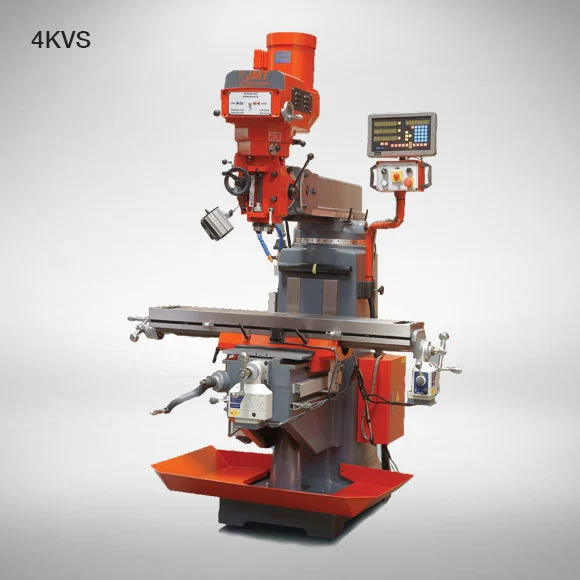

4KVS Features:
3hp spindle motor w/ variable speed
Meehanite casting for high strength & minimal deformation
254 x 1370mm work table
3-axis slideways are harden & precisely ground
X/Y coated w/ “turcite-B”
Spindle taper: ISO 40
ZY axes box slideway “SQ” for maximum rigidity
Slideway covers Y & Z axis
High / neutral and low gear selection lever to maximize torque
Automatic cut off depth stop on quill
Head tilts +/-45 degree forward to back
Head swivels +/-90 degree left and wirght
Manual quick action quill lever
Mechanical spindle brake
(Note: BMT mills were previously marketed under the JMT brand name.)
BMT vertical milling machines are 100% made in Taiwan and are solidly built with tons of features for an economical price. The castings of the machines are forged using Meehanite® for extra rigidity, meaning less vibration and offering better tolerances and longer operation life.
4KVS Options:
3-axis DRO fitted
Align AL-500S power-feed
5hp motor
ISO 40 taper
Air drawbar
Coolant pump
Spindle safety guard
Riser block
Swarf tray
Halogen work light
