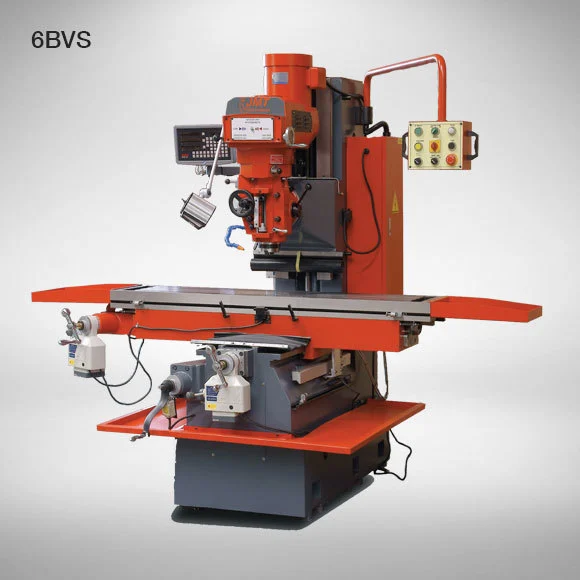

BMT YS Turret Mills 6BVS

Description

The X, Y and Z axis of BMT vertical milling machine are induction hardened, then surface ground and finally treated with Turcite-B® offering a longer and more precise life. 3KVS has “V” slideway for Z and Y axes; 4KVS and 6BVS has box “SQ” slideway for Z and Y axes. All three axes have a power feeds that are coupled to optional three axis DRO (digital read out). All three models are equipped with variable speed producing speeds as low as 70 up to 4200 RPM. Step speed models are available by requests. Like all BMT milling machines there is a lot of value in this model for a moderate investment that will offer the machinist decades of service.

6BVS Features:

5hp spindle motor w/ variable speed
305x1370mm work table
3-axis slideways are harden & precisely ground
X/Y coated w/ “turcite-B”
Spindle taper: ISO40
Box slideway “SQ” for X, Y & Z-axis.
Slideway covers Y & Z axis
One-piece casting bed
High/neutral and low gear selection lever to maximize torque
Automatic cut off depth stop on quill
Head tilts +/-45 degree forward to back
Head swivels +/-90 degree left and wirght
Manual quick action quill lever
Mechanical spindle brake

(Note: BMT mills were previously marketed under the JMT brand name.)
