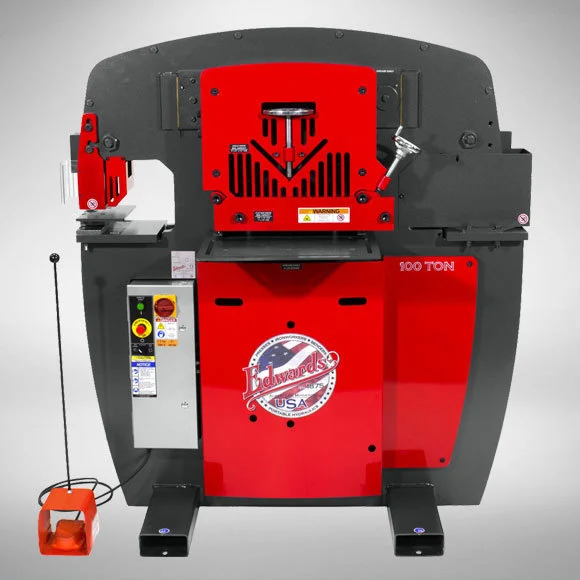

Edwards 100 Ton Ironworker

GENERAL SPECS
Rated Capacity 100 ton
Throat Depth 10"
Open Height 8-5/8"
Shut Height 6-3/4"
Stroke 1-7/8"
Electric Motor Standard 5 HP, 3 Phase, 208/240 v,
1725 rpm, 14 amp
Hydraulic Pump Size 10-1/2 gpm - 2 stage
Valve Pressure 3000 psi
Reservoir 17 gallons
Cylinder 3-1/2" ram
Dimensions: Base 42-3/4" x 43"
Height 62"
Shipping weight 3850 poundsElectric Motor Options
* 5 HP, 3 Phase, 440/480 v or
* 575 v, 7 amp, 5 HP, 1 Phase, 208/240 v, 1725 rpm, 26 ampPUNCH
Max. Capacity 1-1/16" dia. in 1" plate
Work Height 41-1/2"FLAT BAR SHEAR
Max. Width 3/4" x 14"
Max. Thick. 1" x 10"
Max. Round 1-1/4"
Max. Square 1-1/4"
Work Height 41-1/2"ANGLE SHEAR
Max. Size 6" x 6" x 1/2"
Work Height 49"OPEN STATION
Throat Depth 10"
Open Height 8-5/8"
Shut Height 6-3/4"
Stroke 1-7/8"
Work Height 39-1/4"
