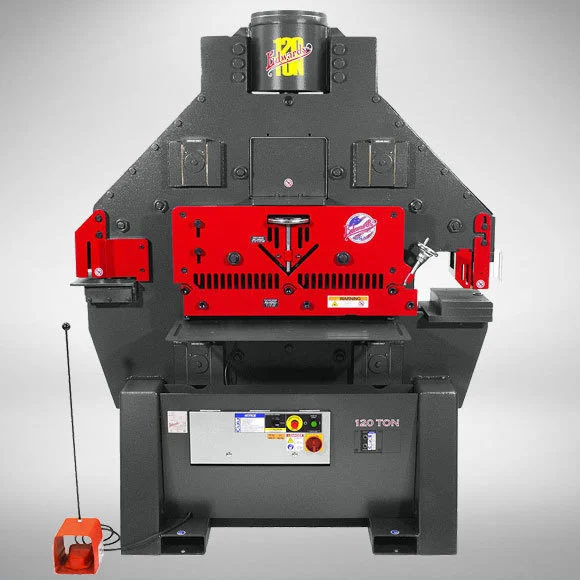

Edwards 120 Ton Ironworker

GENERAL SPECS
Rated Capacity 120 ton
Throat Depth 11"
Open Height 9-1/8"
Shut Height 7"
Stroke 2-1/2"
Cycle Time 2.5 seconds
Electric Motor Standard 10 HP, 3 Phase, 208/240 v,
1725 rpm, 26 ampHydraulic Pump Size 24 gpm
Valve Pressure 4500 psi
Reservoir 17 gallons
Cylinder 2-3/4" ram
Dimensions: Base 60" x 60"
Height 84"
Shipping weight 5500 poundsElectric Motor Options
* 10 HP, 3 Phase, 440/480 v or
* 575 v, 13 amp, 10 HP, 1 Phase, 230 v, 40 ampPUNCH
Max. Capacity 1-1/2" dia. in 1" plate
Work Height 36-5/8"FLAT BAR SHEAR
Max. Width 1/2" x 24"
Max. Thick. 1" x 12"
Max. Round 1-1/4"
Max. Square 1-1/4"
Work Height 33-3/4"COPER/NOTCHER
Max. Capacity 3" x 6" x 1/2"
Work Height 40"OPEN CAVITY
Specifications 11-3/4" wide x 9" tall
Work Height 51-3/4"
