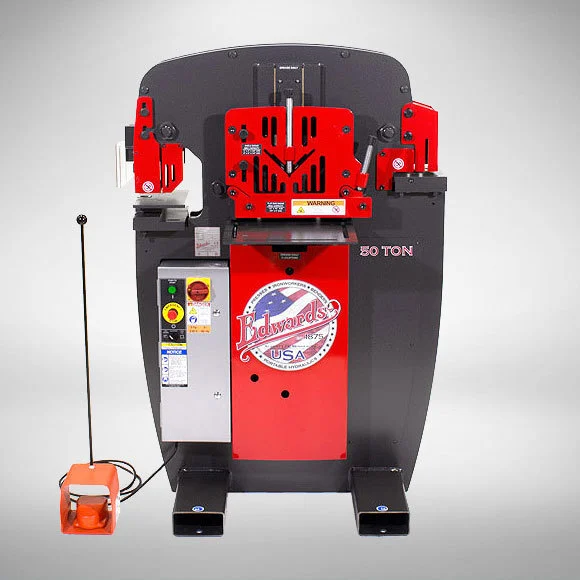

Edwards 50 Ton Ironworker

GENERAL SPECS
Rated Capacity 50 ton
Throat Depth 7"
Open Height 8-1/8"
Shut Height 7"
Stroke 1-1/8"
Cycle Time 2 seconds
Electric Motor Standard 5 HP, 3 Phase, 208/240 v,
1725 rpm, 14 amp
Hydraulic Pump Size 3-1/2 gpm - 1 stage
Valve Pressure 2500 psi
Reservoir 7 gallons
Cylinder 2-1/2" ram
Dimensions: Base 28-1/4" x 38-1/2"
Height 54"
Shipping weight 1550 poundsElectric Motor Options
* 5 HP, 3 Phase, 440/480 v or
* 575 v, 7 amp, 5 HP, 1 Phase, 208/240 v, 1725 rpm, 26 ampPUNCH
Max. Capacity 1" dia. in 5/8" plate
Work Height 37-5/8"FLAT BAR SHEAR
Max. Width 1/2" x 10"
Max. Thick. 3/4" x 4"
Max. Round 3/4"
Max. Square 3/4"
Work Height 35-1/2"ANGLE SHEAR
Max. Size 4" x 4" x 1/4" or 3" x 3" x 3/8"
Work Height 40-3/4"OPEN STATION
Max. Capacity 2" x 3" x 5/16"
Work Height 43-1/8"
