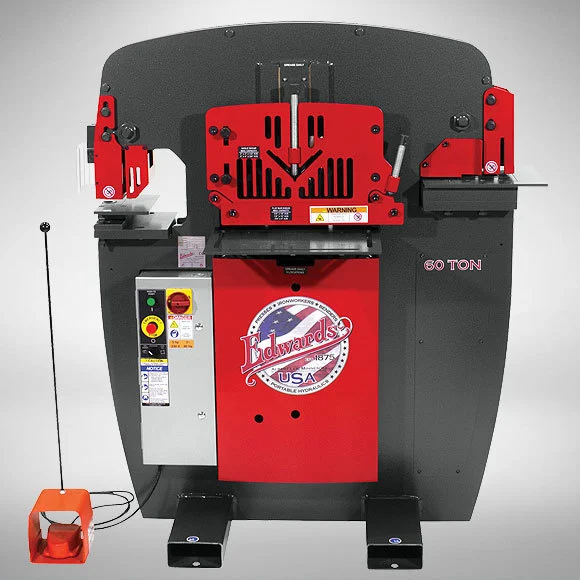

Edwards 60 Ton Ironworker

GENERAL SPECS
Rated Capacity 60 ton
Throat Depth 7-1/2"
Open Height 8"
Shut Height 6-3/4"
Stroke 1-1/4"
Cycle Time 2 seconds
Electric Motor Standard 5 HP, 3 Phase, 208/240 v,
1725 rpm, 14 amp
Hydraulic Pump Size 3-1/2 gpm - 1 stage
Valve Pressure 2800 psi
Reservoir 7 gallons
Cylinder 2-1/2" ram
Dimensions: Base 36" x 42-1/2"
Height 59"
Shipping weight 2475 poundsElectric Motor Options
* 5 HP, 3 Phase, 440/480 v or
* 575 v, 7 amp, 5 HP, 1 Phase, 208/240 v, 1725 rpm, 26 ampPUNCH
Max. Capacity 1" dia. in 3/4" plate
Work Height 37-1/2"FLAT BAR SHEAR
Max. Width 1/2" x 12" or 3/8" x 14"
Max. Thick. 3/4" x 4"
Max. Round 7/8"
Max. Square 7/8"
Work Height 34-3/4"ANGLE SHEAR
Max. Size 4" x 4" x 3/8" or 3" x 3" x 1/2"
Work Height 40"COPER/NOTCHER
Max. Width 2-1/2" x 5" x 1/4"
Max. Thick. 2-1/2" x 4" x 3/8"
Work Height 40-3/8"
