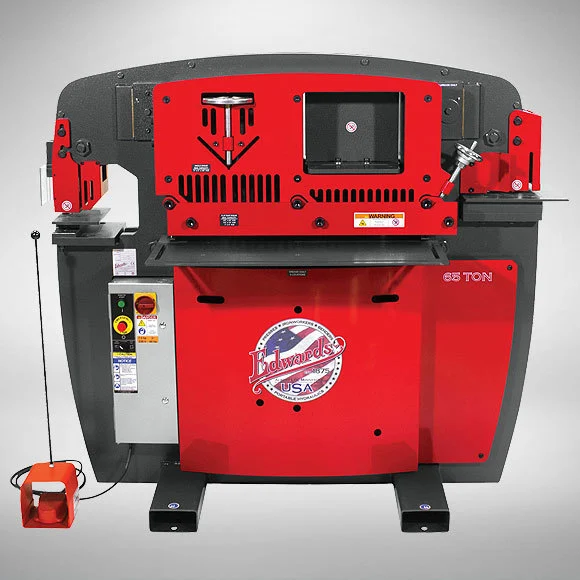

Edwards 65 Ton Ironworker

GENERAL SPECS
Rated Capacity 65 ton
Throat Depth 9-3/4"
Open Height 8-1/8"
Shut Height 6-3/4"
Stroke 1-3/8"
Cycle Time 2 seconds
Electric Motor Standard 5 HP, 3 Phase, 208/240 v,
1725 rpm, 14 amp
Hydraulic Pump Size 10-1/2 gpm - 2 stage
Valve Pressure 2800 psi
Reservoir 17 gallons
Cylinder 3-1/2" ram
Dimensions: Base 43" x 42"
Height 55"
Shipping weight 4220 poundsElectric Motor Options
* 5 HP, 3 Phase, 440/480 v or
* 575 v, 7 amp, 5 HP, 1 Phase, 208/240 v, 1725 rpm, 26 ampPUNCH
Max. Capacity 1-1/16" dia. in 3/4" plate
Work Height 36"FLAT BAR SHEAR
Max. Width 3/8" x 24"
Max. Thick. 1/2" x 14" or 1" x 4"
Max. Round 1"
Max. Square 1"
Work Height 33-1/2"ANGLE SHEAR
Max. Size 5" x 5" x 1/4" or 4" x 4" x 3/8"
Work Height 42"COPER/NOTCHER
Max. Capacity 2-1/2" x 6" x 3/8"
Work Height 35-1/2"OPEN CAVITY
Specifications 11-1/2" wide x 9-3/4" tall
Work Height 42"
