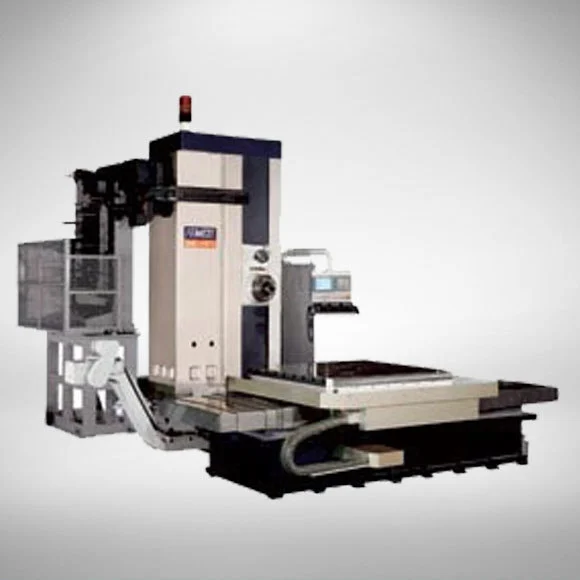

FEMCO BMC-110T3 CNC Horizontal Boring Mill

The BMC-110FT3 has an extended X axis travel of 118" . It has a built-in facing head (U axis) for large capacity turning while still maintaining full functionality of the W axis (boring, milling, drilling and tapping). It incorporates a traveling column design with increased table load capacities. It comes standard with a 50 taper, 35 hp geared head spindle, linear scales on X, Y and Z axis, chip conveyor and a Fanuc CNC control. Optional accessories include a 60 or 90 station automatic tool changer, through the spindle coolant system and a full 4th axis.118.11" Table Cross Travel (X)82.67" Headstock Travel (Y)59.05" Table Longitudinal Travel (Z)56.69" x 62.99" Table Size17,600 lb. Table Load19.69" Spindle Stroke (W)4.33" Spindle Diameter2,500 RPM Spindle Speed
