Hyd-Mech Blue Line Series (Portable & Single Miter)

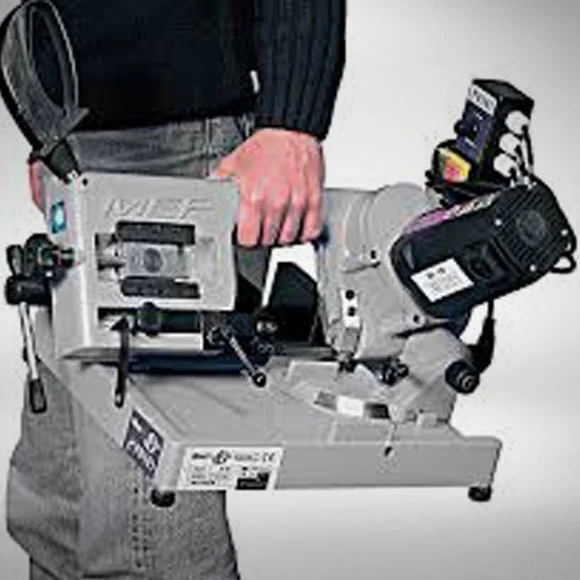

Superior, portable sawing technology goes anywhere with the PH101 portable band saw (see Hyd-Mech Cold Saws page for the P255 portable cold saw). The PH101 is 115 volts and may be placed on a bench top and plugged into the wall. Ideal for home use or easily transported to the job site. For convenience, the PH101 uses a standard " porta-band" blade, which is available at any local hardware store for replacement.The PH211 and PH261 are economical, standard duty single miter band saws that have a smaller footprint than larger models, but are designed to stay put in a maintenance shop. Both band saws offer a larger cutting capacity. The PH211 is a manual machine with a ¾" blade, while the PH261 is a semi-automatic machine with a 1" blade.----------------PH 101 Portable Band SawPerfect for the hobbyists and fitters, the PH101 is suited for dry cutting from 0° up to 45° left.The machine is manufactured completely in aluminum die casting. It is available in single-phase 110 v. Also available with optional support stand. (Please note that this model is not available in Canada.)Standard Features: Powerful 1500W brush motor with an electronic speed selector - Transmission is driven by a double coupling of casehardened steel gears with helical teeth - Head swivels and is locked by means of a screw for miter cutting - Control handle with micro switch and safety switch to start or stop blade motion - Adjustable front band guide so as to position it according to the dimensions of the material which is being cut - Bi-metal band - Adjustable stop to makes cuts of the same length - Instruction manual for maintenance - Spare parts list
Option: PH101 Support Stand----------------PH 211 Manual Band SawThe PH211 is an economical machine that is heavy enough for your light production and maintenance needs. It offers precision, speed, and versatility to meet all your requirements. It comes equipped with a sturdy base and a heavy duty saw head capable of 60° mitering. (Please note that this model is not available in Canada.)Standard Features: Electric Control Panel with Emergency Stop - IP55 Control Panel - Adjustable stops at 0° and 60° with clamping lever for in-between angles - Head pivoting with preloaded taper bearings - Vice with fast positioning device - Steel base with pull-out coolant tank - Electric Pump for band lubrication and cooling - Wire chip brush for band cleaning - Double head return spring - Adjustable cut to measure stop to make cuts of the same length - Power on Indicator - Bi-metal band saw blade - Carbide blade guides - Shut off indicator for broken blade or low tension - Blade drive load monitor - Hydraulic band tension gauge----------------PH 261 Manual Band SawThe PH261 is an economical machine that is heavy enough for your light production and maintenance needs. It offers precision, speed, and versatility to meet all your requirements. It comes equipped with a sturdy base and a heavy duty saw head capable of 60° mitering.The PH261 has an automatic cut operation. With a push of a button on the solenoid controlled handle, the blade starts, the coolant pours on the blade, and the saw frame comes down at a pre-set rate of the operator's choice. When the machine completes the cut, the PH261 shuts off. Each subsequent cut will be made exactly as the first cut, with the same settings and rates. The vise clamping and saw frame are manually controlled. (Please note that this model is not available in Canada.)Standard Features: Electric Control Panel with Emergency Stop - IP55 Control Panel - Adjustable stops at 0° and 60° with clamping lever for in-between angles - Head pivoting with preloaded taper bearings - Vice with fast positioning device - Steel base with pull-out coolant tank - Electric Pump for band lubrication and cooling - Wire chip brush for band cleaning - Double head return spring - Adjustable cut to measure stop to make cuts of the same length - Power on Indicator - Bi-metal band saw blade - Carbide blade guides - Shut off indicator for broken blade or low tension - Blade drive load monitor - Hydraulic band tension gauge
