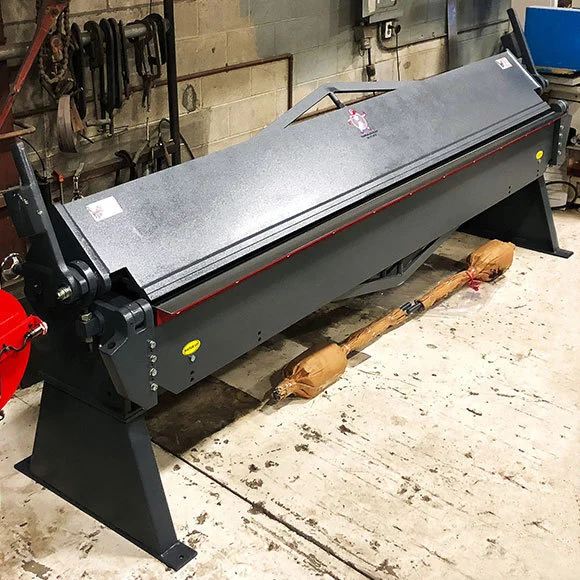

BMT Leaf Brakes
Have one to sell?
ConditionNew
1 available
New
BMT brand leaf brakes are a great addition to any sheet metal fabrication shop. These manual brakes have welded steel bodies for reliable performance bend after bend. Adjustment screws are located on the side and back of the machine for easy access. BMT leaf brakes are easy to set up and operate. An angle gauge lets you repeat bend with a high degree of accuracy.
(Note: BMT sheet metal brakes were previously marketed under the JMT brand name.)
How to Use a Leaf Brake
BMT Straight Brakes
Model
V-412
V-612
V-812
V-816
V-1014
V-1016
V-1218
V-4022
Bending Capacity Mild Steel
12 GA (2.5mm)
12 GA (2.5mm)
12 GA (2.5mm)
16 GA (1.6mm)
14 GA (2.0mm)
16 GA (1.6mm)
18 GA (1.2mm)
22 GA (0.8mm)
Bending Capacity Stainless Steel
16 GA (1.6mm)
16 GA (1.6mm)
16 GA (1.6mm)
20 GA (1.0mm)
18 GA (1.2mm)
20 GA (1.0mm)
22 GA (0.8mm)
24 GA (0.6mm)
Bending Length
48" (1220mm)
72" (1830mm)
96" (2440mm)
96" (2440mm)
120" (3048mm)
120" (3048mm)
145" (3700mm)
157" (4000mm)
Bending Angle
0-135°
0-135°
0-135°
0-135°
0-135°
0-135°
0-135°
0-135°
Beam Adjustment
1" (25mm)
1" (25mm)
1" (25mm)
1" (25mm)
1" (25mm)
1" (25mm)
1" (25mm)
1" (25mm)
Min Reverse Bend
0.63" (16mm)
0.63" (16mm)
0.63" (16mm)
0.63" (16mm)
0.63" (16mm)
0.63" (16mm)
0.63" (16mm)
0.63" (16mm)
Shipping Dimensions
71"×34"×44"
97"×34"×44"
123"×34"×46"
123"×34"×44"
146"×34"×44"
146"×34"×46"
167"×34"×48"
185"×36"×48"
Shipping Weight
1323 Lbs.
1654 Lbs.
2646 Lbs.
2646 Lbs.
3307 Lbs.
2866 Lbs.
3969 Lbs.
4850 Lbs.
