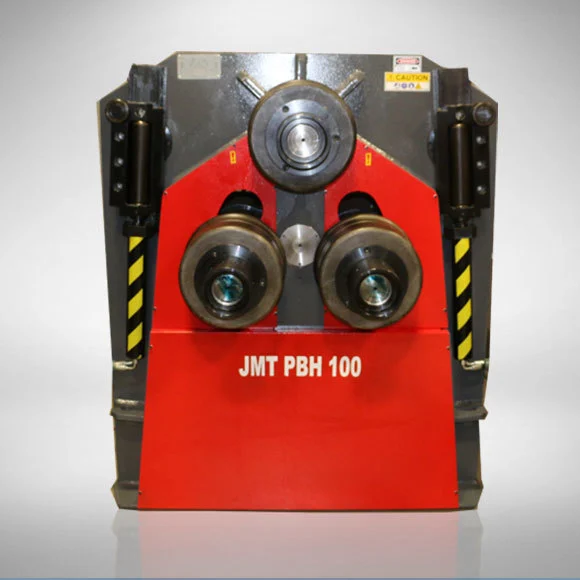

BMT PBH 100 Profile Bender (Hydraulic)

BMT Hydraulic Profile Rolls

Shaft Diameter - Top: 4.33" (110mm)
Shaft Diameter - Planetary (2) 3.94" (100mm)
Roll Diameters: 12.4"
Motor Power: 15 HP
Turning Speed: 0 - 26 FPM
Dimensions: 69" L x 53" W x 65" H
Weight: 7392 lbs.

STANDARD SPECIFICATIONS:
- 1 set of standard universl hardened and ground rolls (special steel)
- All three rolls (shafts) are hydramotor driven through planetary gear box
- 3-axis hardened side supports (lateral guide rolls) with hydraulic forward-backward movement (Thrust ) and mechanical up-down and right-left movement
- Side supports will accommodate leg-in / leg-out angle iron bending
- Portable control panel with programmable DROs
- Vertical or horizontal operation
- Body constructed of stress-relieved steel
- Hydraulic/electrical overload protection
- Bottom roll shafts hydraulically adjusted
- World standard electrical/hydraulic components (parts stocked by us or available off-the-shelf from your local supplier)
- Compliant with CE norms regulations

OPTIONS:
- Special rolls for tubes, profiles,etc.
- Rolls and tooling for hardway beam/channel bending
- Adjustable turning speed
- Hydraulic control of lateral guide rolls in additional 2 axes (Translation / Radial )
- Digital readout for side supports
- NC control system - with or without axis
- CNC control system
- Remote (wired or wireless)
- Special apparatus to prevent deformation on U-I-H bending
- Spiral bending apparatus
