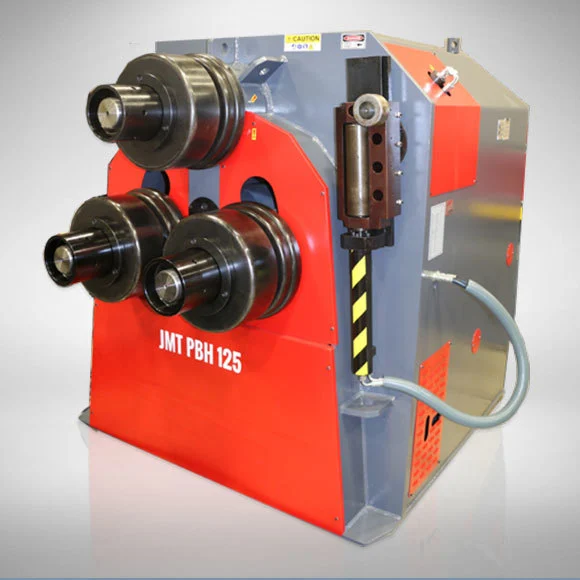

BMT PBH 125 Profile Bender (Hydraulic)

BMT Hydraulic Profile Rolls

Shaft Diameter - Top: 5.5"
Shaft Diameter - Planetary: (2) 4.7"
Roll Diameters: 15"
Motor Power: 20 HP
Turning Speed: 0 - 29 FPM
Dimensions: 73" L x 61" W x 66" H
Weight: 10,120 lbs.

STANDARD SPECIFICATIONS:
- 1 set of universal standard hardened and ground rolls (special steel)
- All three rolls (shafts) are hydramotor driven through planetary gear box
- Hydraulic control of lateral guide rolls in 3 axes (Thrust / Translation / Radial )
- Side supports will accommodate leg-in/leg-out angle iron
- Portable control panel with programmable DROs
- Vertical or horizontal operation
- Body constructed of stress-relieved steel
- Hydraulic/electrical overload protection
- Bottom roll shafts hydraulically adjusted
- World standard electrical/hydraulic components (parts stocked by us or available off-the-shelf from your local supplier)
- Compliant with CE norms regulations

OPTIONS:
- Special rolls for pipe, profiles, bar/angles, etc.
- Rolls and tooling for hardway beam/channel bending
- Adjustable turning speed
- Digital readout for side supports
- NC control system - with or without axis
- CNC control system
- Remote (wired or wireless)
- Special apparatus to prevent deformation on U-I-H bending
- Spiral bending apparatus
