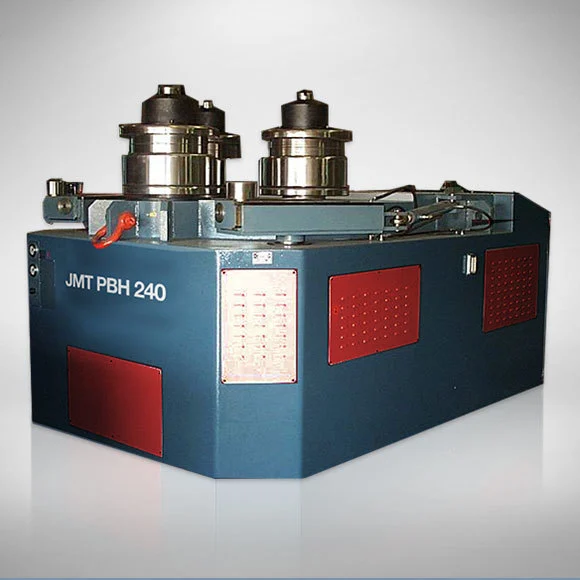

BMT PBH 240 Profile Bender (Hydraulic)

BMT Hydraulic Profile Rolls

Standard Specifications:
- 1 set of standard universal hardened and ground rolls (special steel)
- Bottom and top rolls have two separate planetary gear boxes and are hydramotor driven
- Hydraulic control of lateral guide rolls in 3 axes (Thrust / Translation / Radial ) - 6 axes total
- Adjustable turning speed
- Portable control panel with programmable DROs
- Horizontal operation
- Body constructed of stress-relieved steel
- Hydraulic/electrical overload protection
- Bottom roll shafts hydraulically adjusted
- World standard electrical/hydraulic components (parts stocked by us or are available off-the-shelf from your local supplier)
- Compliant with CE norms regulations

Options:
- Special rolls for pipe and profiles
- Rolls and tooling for hardway beam/channel bending
- Digital readout for side supports
- NC control system - with or without axis
- CNC control system
- Remote (wired or wireless)
- Anti-deformation apparatus for U-I-H bending
- Spiral bending apparatus
- Custom machines available
