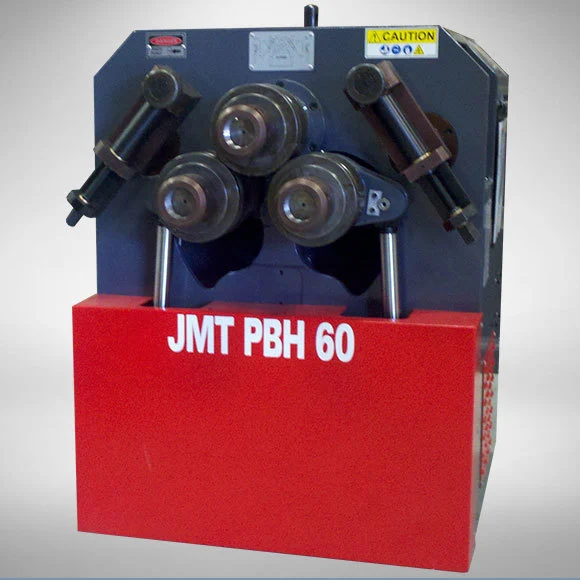

BMT PBH 60 Profile Bender (Hydraulic)

BMT Hydraulic Profile Rolls

Top Shaft Diameter: 2.364" (60mm)
Planetary Shaft Diameters (2): 2.364" (60mm)
Roll Diameters: 7"
Motor Power: 3 + 2 HP
Turning Speed: 0 - 17 FPM
Dimensions: 46" L x 39" W x 46" H
Weight: 2627 lbs.

STANDARD SPECIFICATIONS:

1 set of standard universal hardened and ground rolls (special steel)
All three rolls (shafts) are driven through precision gear box
3-axis hardened side supports (lateral guide rolls) with mechanical forward-backward (Thrust), up-down (Translation) and right-left (Radial) movement
Side supports will accommodate leg-in/leg-out angle iron bending
Portable control panel with programmable DROs
Vertical or horizontal operation
Body constructed of stress-relieved steel
Hydraulic/electrical overload protection
Bottom roll shafts hydraulically adjusted
World standard electrical/hydraulic components (parts stocked by us or available off-the-shelf from your local supplier)
Compliant with CE norms regulations

OPTIONS:

Special rolls for tubes, profiles, etc.
Rolls and tooling for hardway beam/channel bending
Fully hydraulic side supports (per axis)
Digital readout for side supports
NC control system - with or without axis
CNC control system
Remote (wired or wireless)
Adjustable turning speed
Tie Bar for rolls
Spiral bending apparatus
