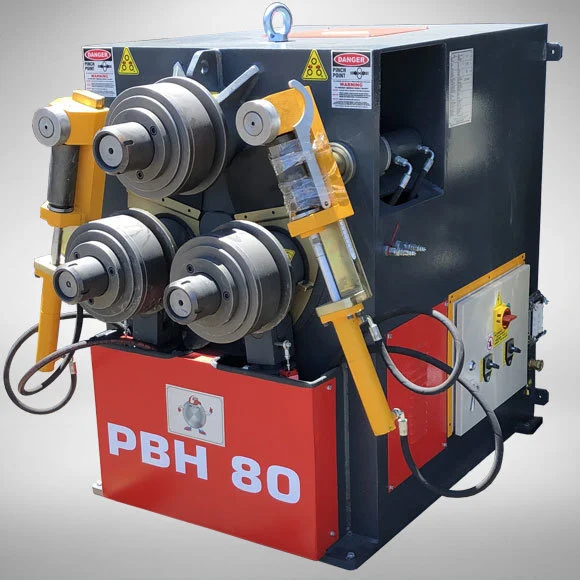

BMT PBH 80 Profile Bender (Hydraulic)

BMT Hydraulic Profile Rolls

Top Shaft Diameter: 3.349" (85mm)
Planetary Shaft Diameters (2): 3.152" (80mm)
Roll Diameters: 9.7"
Motor Power: 10 HP
Turning Speed: 0 - 23 FPM
Dimensions: 62" L x 47" W x 56" H
Weight: 5170 lbs.

STANDARD SPECIFICATIONS:
- 1 set of standard universal hardened and ground rolls (special steel)
- All three rolls (shafts) are hydramotor driven through planetary gear box
- 3-axis hardened side supports (lateral guide rolls) with mechanical forward-backward (Thrust ), up-down (Translation ) and right-left (Radial ) movement
- Side supports will accommodate leg-in / leg-out angle iron bending
- Portable control panel with programmable DROs
- Vertical or horizontal operation
- Body constructed of stress-relieved steel
- Hydraulic/electrical overload protection
- Bottom roll shafts hydraulically adjusted
- World standard electrical/hydraulic components (parts stocked by us or available off-the-shelf from your local supplier)
- Compliant with CE norms regulations

OPTIONS:
- Special rolls for tubes, profiles, etc.
- Rolls and tooling for hardway beam/channel bending
- Fully hydraulic side supports (per axis)
- Digital readout for side supports
- Adjustable turning speed
- NC control system - with or without axis
- CNC control system
- Remote (wired or wireless)
- Tie Bar for rolls
- Spiral bending apparatus
