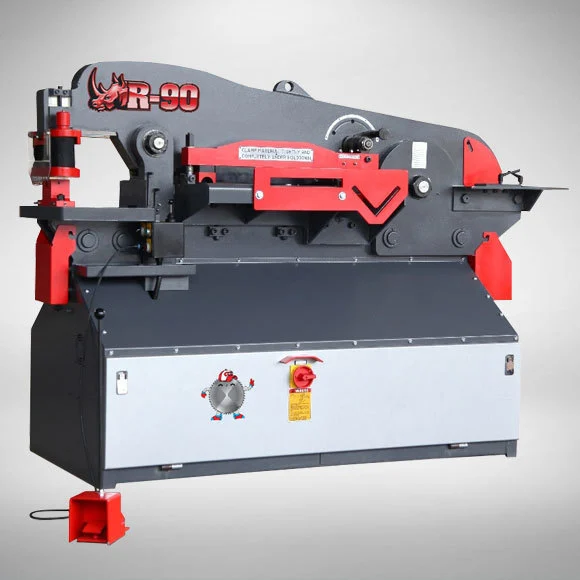

BMT Rhino R-90 Ironworker

90 TON HYDRAULIC IRONWORKER
MODEL RHINO R-90

SPECIFICATIONS (Mild Steel)

Punching: 1 1/8" diameter through 1" plate
Throat Depth: 12"
Bending: 12" w/4-way die block
Round Bar Shear: 1/2" through 2"
Square Bar Shear: 1/2" through 1-3/8"
Plate Shear: 20" x 1/2", 18" x 3/4", 12" x 1"
Angle Shear: 6" x 6" x 5/8"
Coping/Notching: 4" x 6" x 3/8" blade
Motor: 15 HP
Weight: 5,800 Lbs.

STANDARD EQUIPMENT

Automatic Hold Downs
Punch Holder, Stripper and Die Block
5 Punch & Die Sets 9/16" through 1-1/16"
12" Bending w/4-Way Die Block
Set of 1 1/4" Round Bar Knives
Set of 16-5/8" Plate Shear Knives
Set of Coper Knives
Set of Angle Knives
Coupling Wrench
3/8" Allen Wrench
Set of Chip Buckets
Extra Filter Element
Foot Switch
Instruction/Parts Book/Video

The Rhino R-90 ironworker comes standard with high speed hydraulics, which includes a higher horsepower motor, allowing for faster cycle times and faster parts production. It comes standard with polyurethane hold downs for less material distortion during punching and cutting.

The innovative design of the Rhino coper/notcher station makes it one of the most versatile in the industry. Operators can cope, notch and trim materials of various thicknesses from any angle. The shearing station has quick hold down adjustment for different material thicknesses. The punch station is equipped with a quick release "dovetail" clamping system allowing quick changeover from a punch to a small press brake attachment. The angle shear has a free-floating top blade which slides to the center of the angle iron before cutting, eliminating distortions for a clean, precise cut.
