Bench NotchersRoper Whitney hand operated notchers come in both bench style and portable hand tool styles.They provide a variety of special capabilities: notching, box forming, dovetailing, coping and corner shearing; for sheet metal, angle iron, and flat stock.No. 100 Notcher

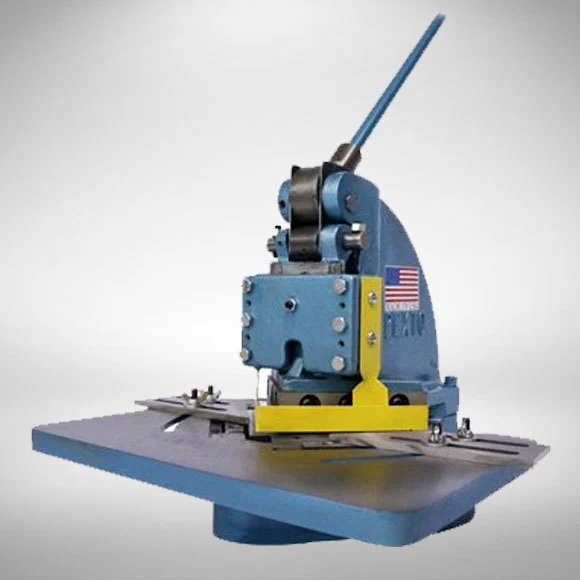

No. PS-66 Notcher, Coper, Shear- Hand Operated
- Bench or Floor Mounted
- Adjustable Gauge Stops
- Replaceable Blades
- Finger GuardsThese handy tools, operating on heavy duty bearings, trim, notch and cope (PS-66) up to 16 gauge sheet metal.The PS-66 is somewhat more rugged in construction and can be used to make inside cuts and to shear with only one side of the blade, which is not recommended with the No. 100.Both shears have adjustable blades, duplicate scales, adjustable gauge stops, and finger guard. Both the upper and lower blades are replaceable.
.Box flange blades are offered in both models and each has the option of a floor mount stand.
Weight 200 lbs
Dimensions 23 × 24 × 21 in
Maximum shearing capacity, mild steel (splay-cut) 16 ga/ 1 , 60 mm
Maximum shearing capacity, mild steel (pierce-cut) 18 ga/ 1 , 25 mm
Maximum notch 6 x 6 in x 90 degrees/ 152 x 152 mm x 90 degrees
Stroke 3/4 in / 19 mm
Shearing width (any length) 6 in/ 152 mm
