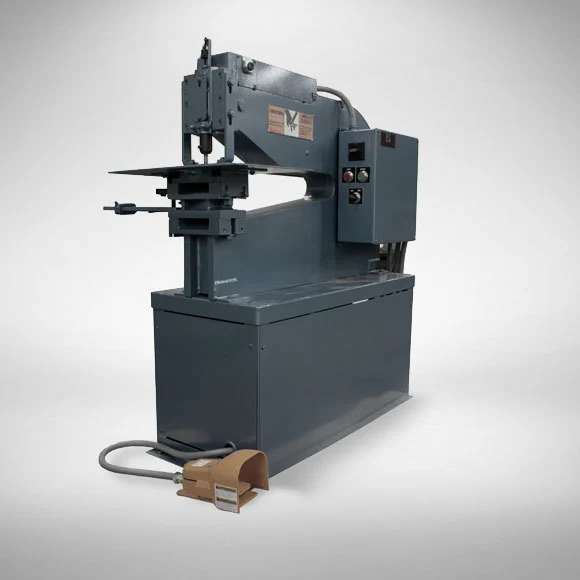

Roper Whitney Deep Throat Mechanical Press

Designed for the small shop, the Deep Throat Mechanical Press economically upgrades production capability. For convenient set-up, operator efficiency and increased productivity the press has a control system that allows the operator to choose jog (for set-up) or run (for production) simply and conveniently. It also has adjustable stroke length and a full "override" capability.Maximum Rated Capacity: 8 Tons*Dimensions:
Length, F-B (A): 44"
Height (B): 51"
Throat Depth (C): 24"
Open Height w/o Punch Holder (D): 6"
Die Height (E): 4"
Width, L-R (F): 18"
Throat Height at Ram: 10"
Length of Stroke: 1"
Ram Adjustment: 3/4"
Bed Plate Holes (C to C): 6¾"
Dia. of Punch Shank Hole in Ram: 1"
Depth of Punch Shank hole in ram: 1¼"
Slug Clearance: 3" x 5"Weight: 900 Lbs.Included Standard Equipment:
Side gauge, depth gauge, one F8 and F28 punch holder, one No. 20 and No. 40 die adapter, H2 3/4" die shoe, one 1/2" round punch and die, one set stripper arms. A7 stripper plate. Gauge work table.* Refer to the tonnage chart below to determine if the rated capacity of this tool will accommodate the type and thickness of metal and the size and shape hole that you will be punching. Do not, under any condition, exceed the rated capacity of this tool.
