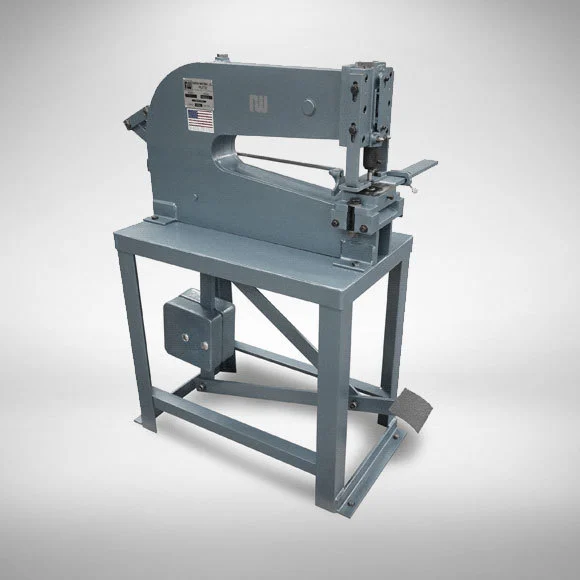

Roper Whitney Foot Press
The Roper Whitney toggle action Foot Press offers the distinct advantage of freeing both hands to position the stock, as well as providing close, nearly effortless control of the punching cycle. The throat depth allows you to punch 18 inches from the edge of the material.Maximum Rated Capacity: 5 Tons*Dimensions:
Length, F-B (A): 34"
Height (B): 48"
Throat Depth (C): 18"
Open Height w/o Tooling (D): 5¾"
Width, L-R (E): 18"
Length of Stroke: 1"
Adjustment of Ram: 3/4"
Die Space with Stroke Down, Adjustment Up: 5"
Diameter of Punch Shank Hole in Ram: 1"
Depth of Punch Shank Hole in Ram: 1¼"
Slug Clearance: 3" x 5"
Bed Plate Holes (C to C): 6¾"
Bed Plate Dimensions: 4½" x 8¼"Weight: 505 Lbs.Foot OperatedIncluded Standard Equipment:
Side gauge, depth gauge, one F8 and F28 punch holder, one No.20 and No.40 die adapter, F2 3/4" die shoe, one set 1/2" round punch and die, one set stripper arms, A7 stripper plate.* Refer to the tonnage chart below to determine if the rated capacity of this tool will accommodate the type and thickness of metal and the size and shape hole that you will be punching. Do not, under any condition, exceed the rated capacity of this tool.
