Roper Whitney Light Duty Bending Brake

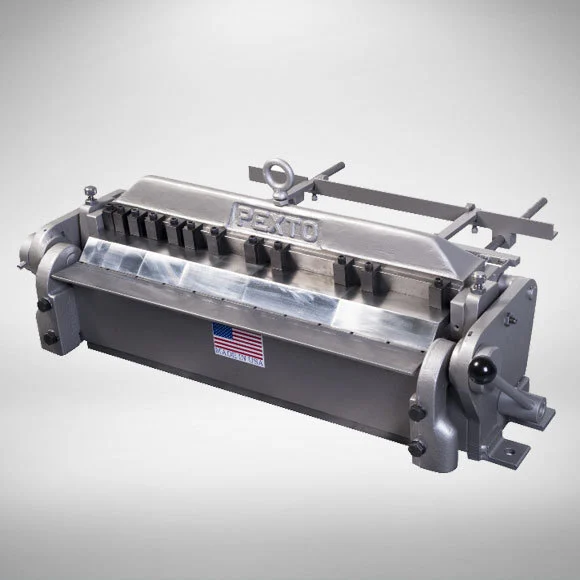

Light duty bending brakes are for light forming requirements (up to 16 gauge mild steel). When used within their rated capacity, they will form a minimum 1/2" flange over their entire length.No. PX24 Box and Pan BrakeMax. Bending Length: 24"Max. Rated Capacity, Bending Bar & Angle in Place: 16 Gauge (Mild Steel, 1" Flange)Max. Rated Capacity, Bending Bar & Angle Removed: 20 Gauge (Mild Steel, 1" Flange)Min. Reverse Bend, Bar & Angle Removed: 1/4"Min. Flange Bend: 1/2"Max. Jaw Opening (Lift of Beam): 1"Max. Bend Angle, Past Horizontal: 45° (only 20° when box fingers are used)Max. Depth of Box: 3"Back Gauge Adjustment: 0-24"Dimensions: 38" x 15" x 15"Dimensions of Optional Stand: 34" x 30" x 14"Weight: 270 Lbs.Weight of Optional Stand: 160 Lbs.The PX24 Box and Pan Brake's adjustable back gauge are ideal for small, precise box and pan work (up to 3" deep). It will accommodate sheet metal up to 16 gauge and will bend as much as a 135° angle in up to a 24" length.Standard equipment provided include one each 3/4", 1", 1¼", 1½", 3", 4½", and two 6" box fingers. Fingers are heat-treated die steel, precision ground. Set of fingers can be arranged to form 3/4" to 24" in 1/4" increments.Adjustable friction brake lock stops upper bar dead-weight drop and permits precise positioning of upper bar to scribed line on workpiece before final clamping.Minimum 1/4" reverse bends are possible with the PX24 by removing both the apron angle iron work support and apron filler plate and reducing the capacity by four gauges.Available Auxiliary AttachmentsThe pan brakes have optional special fingers to adapt them to inside mitered lip boxes, 9" long square tubes and radius bends up to 1".Extension Fingers - For inside mitered lip boxes, minimum 2 1/2" square box.Radius Fingers - Available in widths of 3/4", 1", 1 1/4", 1 1/2", 3", 4 1/2", and 6" with radii of 1/16", 1/8", 3/16", 1/4", 5/16", 3/8", 7/16", 1/2", 3/4", and 1".Open End Finger - For square tubes up to 9" long. Taper from 3/4" to 1 1/2".The optional floor mount stand (shown in photo) available as a separate item.
