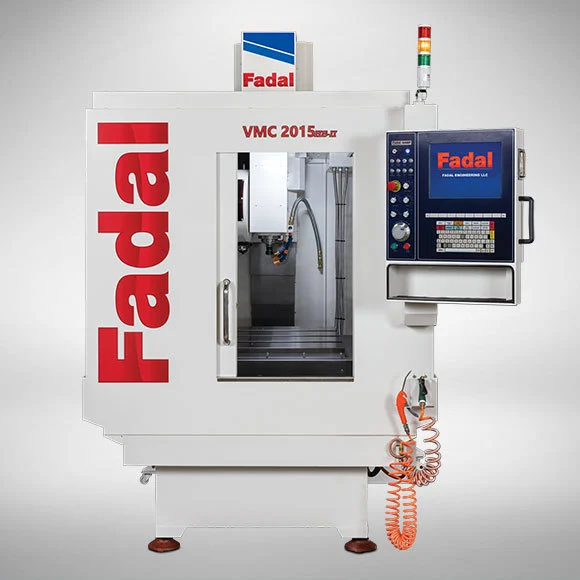

Fadal VMC-2015HS-II Vertical Machining Center

What’s at the Base?In quality machine tools, everything starts at the base, if your base is not rigid, or does not contain sufficient mass to absorb enough heat, you will not hold concentricity without constant adjustment for heat purge. All the new Fadal VMC Series Machining Centers were designed from the ground up with these and more design criteria in mind.  When you set out to design an entirely new line up of CNC machine tools, covering 6 different models, you have indeed cut yourself out a worthy task. What machine tool builders find out very early in life is you can’t design a small machine and then just stretch it up to whatever size you need. It usually doesn’t work out that way. So, what’s realized is, each model will have to be its own design, engineered to perform within its work envelope with outstanding results.SpecificationsModelVMC-2015HS-IITravel X axis (in.)19.7Travel Y axis (in.)15Travel Z axis (in.)15.7Table size (in.)25.6 x 15Max. weight on table (lbs.)400Spindle nose to table (in.)5.9 to 21.7Spindle center to column (in.)16.9T-slots and dimensions (in.)(3) .709 x 3.94Way constructionLinear BallRapid travel rate X/Y/Z (ipm)1,890 / 1,890 / 1,890Axis drive motor X,Y & Z (hp)1.8, 1.8, 1.8Ballscrew size (mm.)32Accuracy positioning - JIS B6338 (in.)0.0002Accuracy repeatabililty - JIS B6338 (in.)0.0001Power transferDirect DriveSpindle speed (RPM)12,000Spindle taperBT-30Spindle Motor (hp) continous/peak7.5/10Spindle chillerStandardSpindle orientationStandardRigid tappingStandardATC typeDual armATC tool selectionRandomNumber of tools20Max. tool diameter (in.)2.4Max. tool length (in.)7.9Max. tool weight (lbs.)6.6Coolant pumpStandardAir pressure required (PSI)90Min. power required at 220V (kVA)15Machine dimensions L x W x H (in.)60 x 94 x 93Machine weight (lbs.)6,160* optional
• specifications are subject to changeStats Any Machine Tool Would Be Proud Of!The spindle speed is excellent at 12,000 r.p.m, with a standard equipment spindle cooler this machine is designed to run at the upper level speeds and do it all day long without additional spindle runout. Utilizing a 7.5 h.p./10 peak h.p. main drive motor, the Fadal VMC-2015HS-II send its spindle power down via a direct drive gearbox with inverter controlled speed. Its high speed spindle, fast rapid travel, combined with a one second tool change, combined to reduce piece part cycle times considerably, while holding increased positioning accuracy and repeatability. The 2015HS-II's linear way design results in maximum vibration damping and ensure vibration-free cutting for consistently closer tolerances.Where Can You Get This Technology?Regardless if your company is located in the Intermountain West region, or in the mountain time zone (or anywhere in the continental U.S. for that matter), Buds Machine Tools is your “go-to” source for quality machine tools, both new and used.Jorgenson specifically represents Fadal Vertical and Horizontal CNC machinery in Utah, Idaho, Montana and Wyoming.Jorgenson is going on 50 years in the business of selling and supporting high quality machine tools of every type. Located in Salt Lake City, Utah, Buds Machine Tools has been selling and then servicing, providing parts, and application knowledge since the first day we went into business. The company is named for Mr. Roger Jorgenson, the father of the current owners, and he said it best many years ago when he set our company motto: Buds Machine Tools, “Strong on Service”
