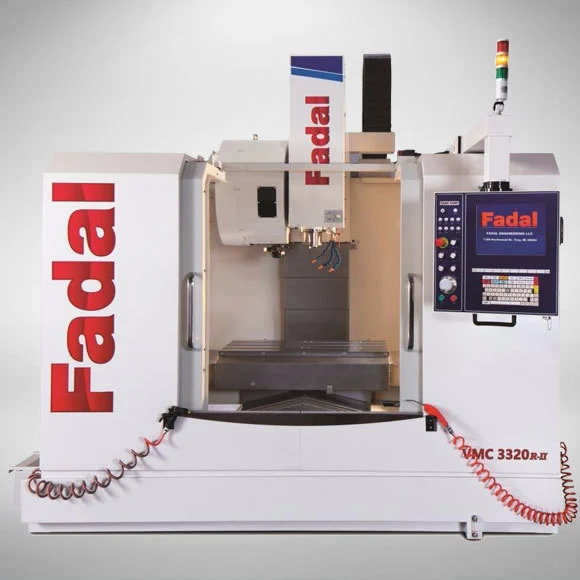

Fadal VMC-3320R-II Vertical Machining Center

What Are Customers Saying About the Fadal VMC 3320R-II?Versatile, compact, productive, small foot print — these are all positive comments Fadal is getting from their customers who have in production the new 3320R-II. Is this not one of the most sought after sized vertical machining centers of all time? With literally hundreds of competitors in this market segment, how does Fadal rise above all the rest?Simple, offer the industry a vertical machining center with the standard equipment found on the VMC 3320R-II machine. The standard equipment list goes on seemingly forever, with over-size axis travel of 33” x 20” x 20” and a larger table than most. The fastest tool-change in the industry takes place in less than 2 seconds. With a dual arm tool changer design, not only does the change happen fast, the dual arm set-up can pick up a heavier tool holder/tool combination with a maximum tool diameter of 4.9 inches.When Fadal provides customers like you with a machine with traverse rates as much as 40% faster than some of their competitors, what you have is a competitively priced vertical machine center capable of putting more parts in the bin by the end of the shift. SpecificationsModelVMC-3320R-IITravel X axis (in.)33Travel Y axis (in.)20Travel Z axis (in.)20 / 30*Table size (in.)39.37 x 17.7Max. weight on table (lbs.)1,100Floor to table surface (in.)34Spindle nose to table (in.)4.7 to 25.1 / 4.7 to 35.1*Spindle center to column (in.)21.25T-slots and dimensions (in.)(3) 4.330 x 0.709 x 1.25Way constructionRoller BearingCutting feed rate (ipm)790Rapid travel rate X/Y/Z (ipm)1,187 / 1,187 / 1,187Axis drive motor X,Y & Z (hp)2.4, 2.4, 2.4Ballscrew size (mm.)40Accuracy positioning - JIS B6338 (in.)0.0002Accuracy repeatabililty - JIS B6338 (in.)0.0001Power transferFadal automatic 2-speed mechanical Hi / LowSpindle speed (RPM)10,000Spindle taperCAT-40 / BT-40*Spindle power - Peak (hp)15 (175 ft lbs Torque)High torque - Peak (hp)*22.5 (220 ft lbs Torque)Spindle chillerStandardSpindle orientationStandardRigid tappingStandardATC typeDual armATC tool selectionRandomNumber of tools24Max. tool diameter (in.)4.9With adjacent tool (in.)3.1Machine weight (lbs.)11,330Machine Dimensions (in.) LxWxH123 x 96 x 103.7Machine Length with Conveyor*155"** optional
• specifications are subject to change Where Do I Go to Learn More About the Fadal Milling Machines?Go to Buds Machine Tools. Yeah, that Jorgenson machine Tools. What’s that you say, they only sell fabrication machines? That is not quite accurate. You see, Buds Machine Tools has been selling lathes and mills for as long as the company has been around. How long is that you wonder? Buds Machine Tools will be 50 years in business this year.Can you find somebody to sell you a Fadal Machine Center for a few bucks less? Possibly, but here’s the catch: will that supplier still be around 4-5 years later to help you service the machine and be a source for not only parts but cutting expertise as well? Buds Machine Tools has a dedicated service department with factory-trained service techs that preform installs, training or repairs as needed. We’ve see it all and repaired it all as well.In addition to all that support, Buds Machine Tools has an exclusive arrangement with the Lyndex-Nikken tool holder company to assist our customers if they wish to secure a load of tool holders along with their new machine. That’s one of the reasons we say: Buds Machine Tools, “Strong on Service.”
