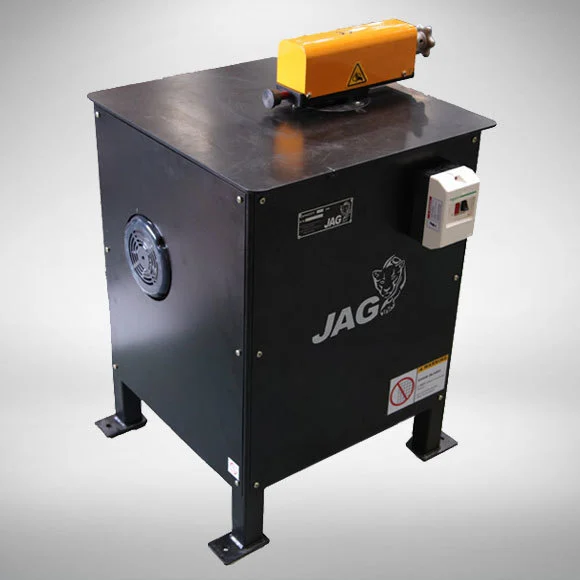

JAG Flanger 1.6
Have one to sell?
ConditionNew
1 available
New
Includes:Industrial motorHeavy 3/4" chassis plateArc-welded steel standAutomatically follows any edge, curved or straightAutomatically flange 16 to 24-gauge material at 18 fpmMachine can be set to produce either 3/8" or 1/4" flange heights (approx.)Calibrated dial can be set for radii as small as 3-1/8" (2" when auto-guide is deactivated)Convenient table slot can be used to turn up a "starting flange"Non-releasing type head is suitable for open end fittings, straight and irregular curves
SpecificationsCapacity: 16 – 24 gauge (0.55 – 1.61 mm)Depth of Pocket: 3/8” (9.5 mm) or 1/4” (6.4 mm)Speed: 18 fpm (5.5 m/min)Motor: 2 HP (1.5 kw) – 115/230 volts, 60 cycle, single phase, AC, 1800 RPMDimensions: 26”L x 24W” x 38”H (660 x 610 x 965 mm)Weight: 300 lbs. (136 kg)
