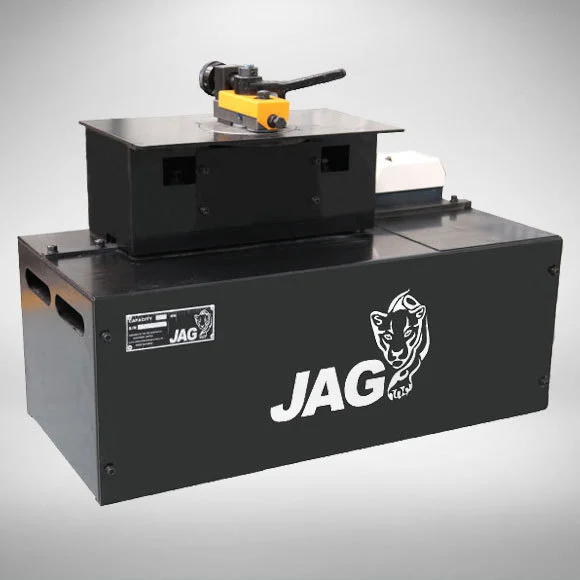

JAG Seamer 0.7
Have one to sell?
ConditionNew
1 available
New
5 forming stations1 inboard forming positionForms Pittsburgh lock profile and right-angled flangeIdeal for 24 gauge (0.70 mm) galvanized steel or lighterHandles radii down to 3-1/4"Lockout automatic feature can run radii down to 1-3/8" at 15-18 fpmForming chassis is constructed out of 1/2" steel plateOptional Auto-Guide Power Flanger attachment is available (automatically follows any edge, straight or irregular, while forming a 7/32" outside flange height)
SpecificationsCapacity: 24 – 28 gauge (0.5 – 0.7 mm)Depth of Pocket: 5/16” (8 mm) – uses 1” (25.4 mm) of materialSpeed: 30 – 35 fpm (9 – 11 m/min)Motor: 1 HP (0.75 kw) – 115 volts, 60 cycle, single phase, AC, 1800 RPMDimensions: 30”L x 13.5W” x 20”H (760 x 340 x 510 mm)Weight: 191 lbs. (87 kg)
