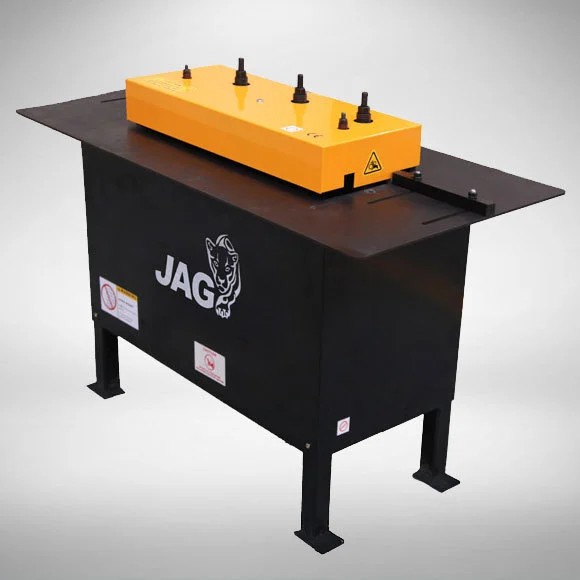

JAG Seamer 1.6
Have one to sell?
ConditionNew
1 available
New
Heavy gauge roll formingVersatile and flexible7 forming stations2 forming positions:An inboard forming position forms Pittsburgh locksAn auxiliary (outboard) forming position has the capability of forming 1 of 8 different profiles (depending on which auxiliary roll set is ordered)Features:High precision needle-type bearingsIndustrial motorHeavy 3/4" chassis plateCase-hardened and ground roll shaftsArc-welded steel stand
SpecificationsCapacity: 16 – 20 gauge (1.0 – 1.6 mm)Depth of Pocket: 1/2” (12.7 mm) – uses 1-3/8” (34.9 mm) of materialSpeed: 45 fpm (13.9 m/min)Motor: 4 HP (3 kw) – 230 volts, 60 cycle, 3 phase AC, 1800 RPMDimensions: 48”L x 24W” x 37”H (1220 x 610 x 940 mm)Weight: 484 lbs. (220 kg)
