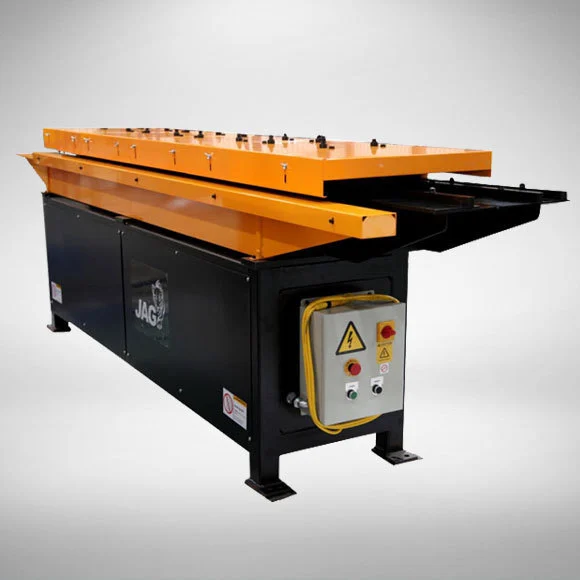

JAG TDF Flange Roll Former
Have one to sell?
ConditionNew
1 available
New
16 forming stationsHeavy-duty steel construction:All steel forming headHardened steel infeed guideHardened steel forming rolls mounted on turned and ground spindlesHigh yield/high tensile strength shaftsUniversal ball bearings that are replaceable "off the shelf"Heavy-duty Mod4 (6 pitch) gearsExtended roll shafts for mounting auxiliary rolls (one side outboard only)No adjustments necessary when going from 26 gauge to 18 gauge materialShort parts feeder included (6 inch minimum lengths, requires no manual adjustment or removal of machine guards when running short parts)Snap Flange feature includedOptional rolls available for TDF clip production (20 gauge)Optional tooling sets available for outboard mounting
SpecificationsCapacity: 16 – 26 gauge (0.55 – 1.31 mm)Depth of Pocket: 1-11/16” (42.9 mm)Speed: 50 fpm (15.2 m/min)Motor: 7-1/2 HP (5.5 kw) – 230 volts, 60 cycle, 3 phase, AC, 1800 RPMDimensions: 141”L x 33W” x 46”H (3570 x 830 x 1150 mm)Weight: 2,420 lbs. (1,100 kg)
