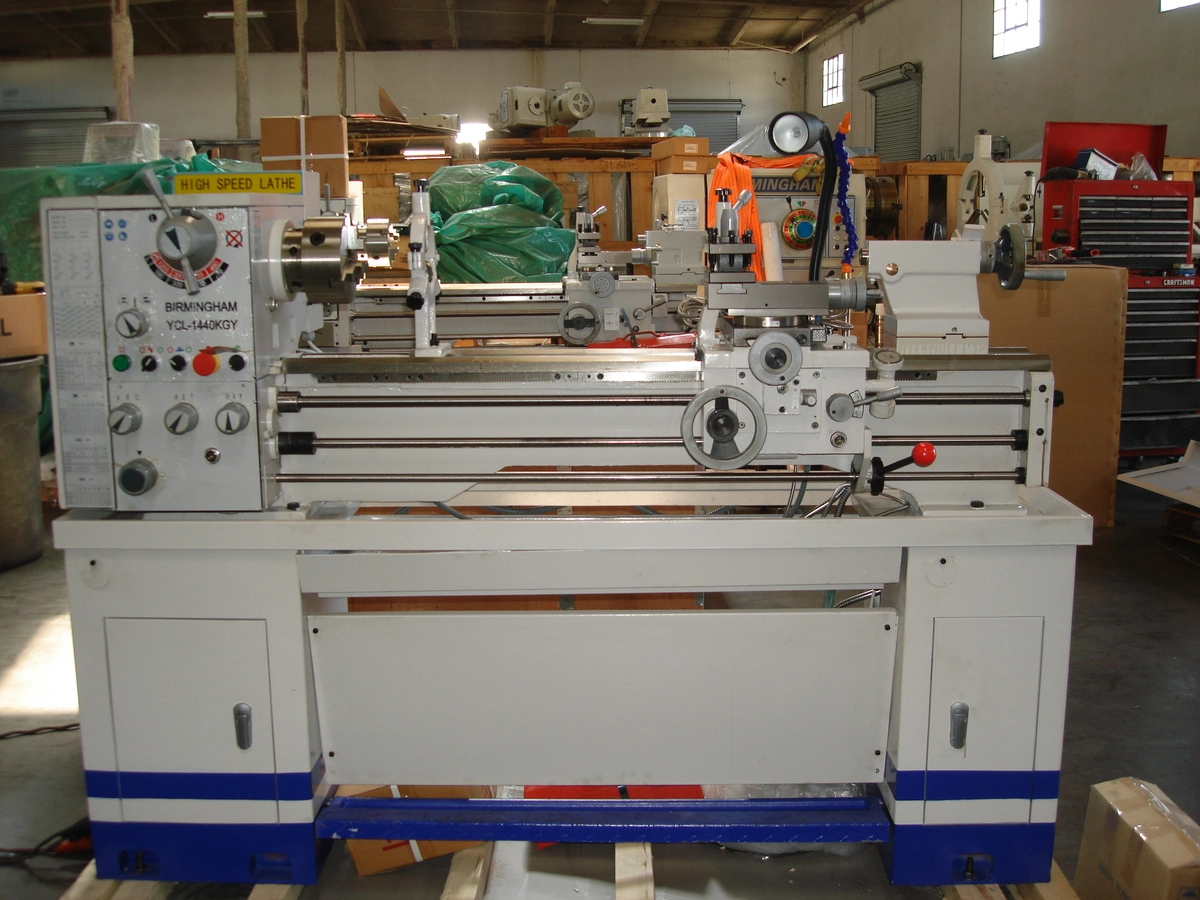

BIRMINGHAM YCL-1440KGY ( 14" X 40" ) Lathe.

Swing over bed 360mm(14")

Swing over cross slide 224mm (8-13/16")

Center height 179mm (7")

Admits between 750mm (30") or 1000mm (40")

Spindle bore 38mm (1-1/2")

Spindle nose D1-4 or D1-5

Taper in nose No 5 Morse

Speeds number 8

Speeds range 70-2000 r/min

Cross slide travel 170mm (6-11/16")

Compound rest travel 95mm (3-9/16")

Lead screw thread 8T.P.I. or 3mm pitch

Feed rod diameter 19mm (3/4")

Cutting tool max section 16mm×16mm (5/8"×5/8")

Threads imperial pitches 42 Nos. 4-112T.P.I

Threads metric pitches 44 Nos. 0.1-7mm

Threads diametral pitches 25 Nos. 16-112DP

Threads module pitches 34 Nos. 0.1-1.75MP

Longitudinal feeds imperial 24 Nos. 0.00168-0.1175"/rev

Longitudinal feeds metric 24 Nos. 0.046-3.249 mm/rev

Cross feeds imperial 32 Nos. 0.00046-0.03231"/rev

Cross feeds metric 24 Nos. 0.01-0.703 mm/rev

Quill diameter 32mm(1-1/4") or 42mm (1-21/32")

Quill travel 100mm (3-15/16") Quill taper No3

Morse Main motor power 1.5kW (2HP)

Coolant pump power 40W (1/16HP)

Packing size (cm) 168 ×76 ×153 (750mm) or 193×76×153 (1000mm)

NG/GW (kg) 510/630 (750mm) or 540/645 (1000mm)

Standard Accessories for 14 / 16 KGY

1. Reduction Sleeve 5/3#

2.Center MT3#(Dead Center, Alloy Center)

3. Three Jaw Chuck 160mm

4. Four Jaw Chuck

5. Chip Tray

6. Splash Guard

7. Tool Box & Tools 1set

8. Face Plate

9. Steady Rest

10. Follow Rest

11.Brake

12.Coolant System

13.Work Light

Optional Accessories：

1. Quick Change Tool Post

2. Taper Turning Attachment

3. Live Center

4. Drill Chuck

5. Chuck Cover

6. Tool Post Cover

7. Leadscrew Cover

8. Driving Plate
