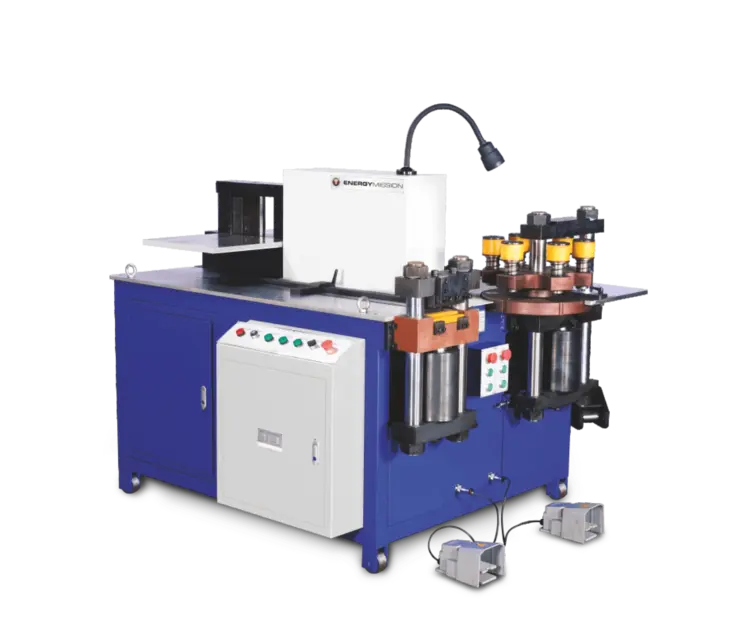

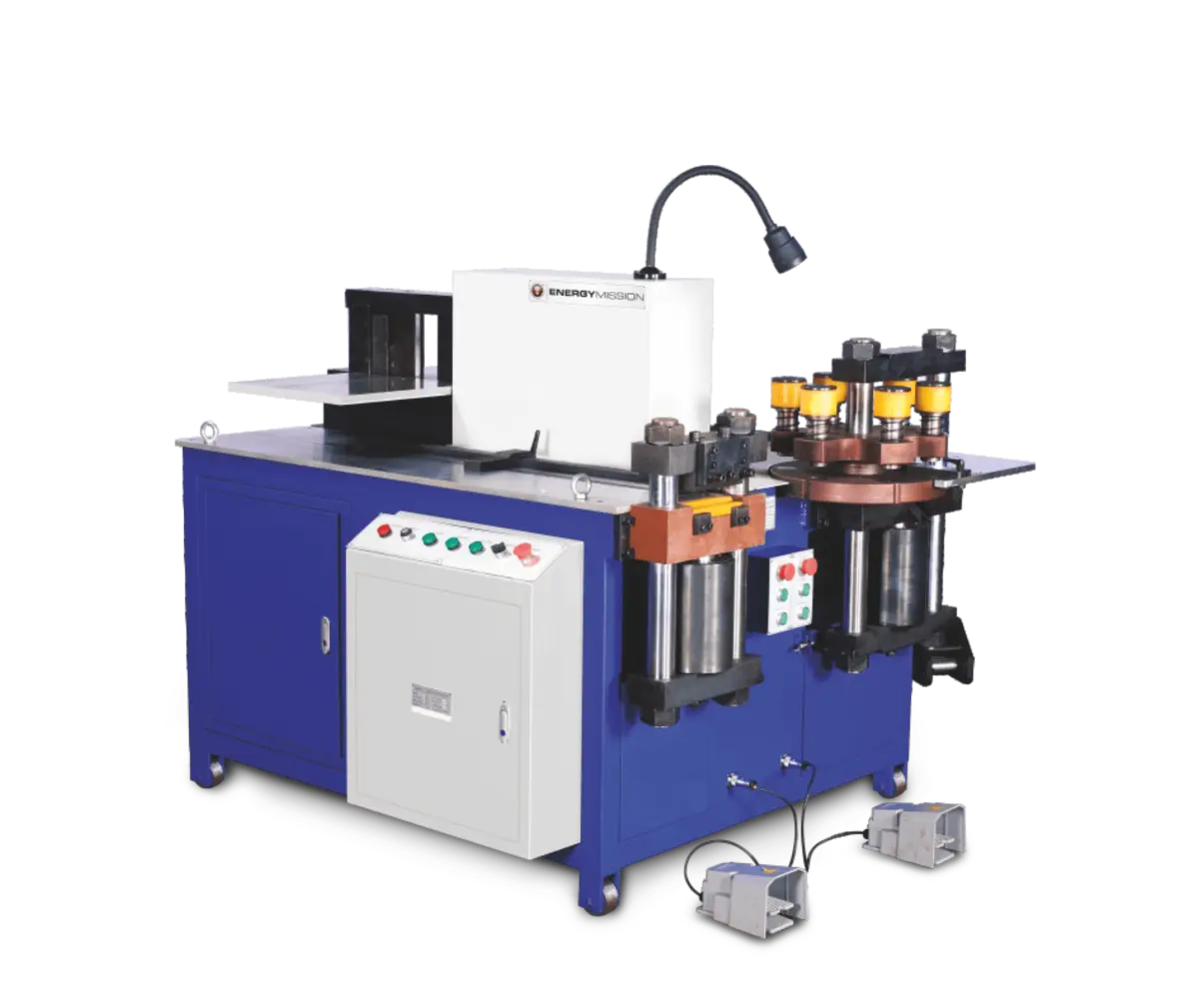

BMT EM BUSBAR 30

BUSBAR 30

SALIENT FEATURES-

BUSBAR is designed to give effective solution for BUSBAR cutting, bending, & punching in one machine.
Manual turret punching design with six stations which avoid time to change Die and Punch in punching station.
Direct shearing avoids any waste of material
Horizontal bending operation suitable for complex & Z type bending
Manual Gauge sto0pper for shearing & punching station.
Parallel operation for all three workstations.

STANDARD ACCESSORIES-

Main drive motor
Electrical control panel
Hardened & grounded HCHCr blade on shearing station
Six different type of punches and dies mounted in punching station
One die & two punches suitable to bending station

TECHNICAL SPECIFICATIONS-
PUNCHING STATION
Size of Punching------------------------------------------------------------------------------.0.01" x .98"

Max. Punching Copper-----------------------------------------------------------------------.98" x .31"

Max Punching Aluminum--------------------------------------------------------------------.98" x .39"

Capsule Punching Copper--------------------------------------------------------------------.82" x .66" x .39" Thick

Capsule Punching Aluminum----------------------------------------------------------------.82" x .66" x .47" Thick

Number of Stroker per Minute---------------------------------------------------------------.8

Number of Turret------------------------------------------------------------------------------.6
SHEARING STATION
Shearing Copper------------------------------------------------------------------------------.39" x 5.9"

Shearing Aluminum--------------------------------------------------------------------------.47" x 5.9"
BENDING STATION
Horizontal Bending Copper----------------------------------------------------------------.39" x 5.9"

Horizontal Bending Aluminum-----------------------------------------------------------.47" x 5.9"

Vertical Bending Copper (optional)------------------------------------------------------.39" x 3.9"

Vertical Bending Aluminum(optional)--------------------------------------------------.47" x 3.9"
OPTIONAL TOOLING
Embossing Tool
Twisting Tool
Numerical Control (NC)
TECHNICAL DATA
Mode of Operation: Parallel
Gauging: Manual
Motor Power: 3 HP x 3 Nos.
Overall Dimensions: (LxWxH) Approx. 78" x 55" x 51"
Machine Weight: Approx. 1.6 Tons
Oil Tank Capacity: 120 Litre
