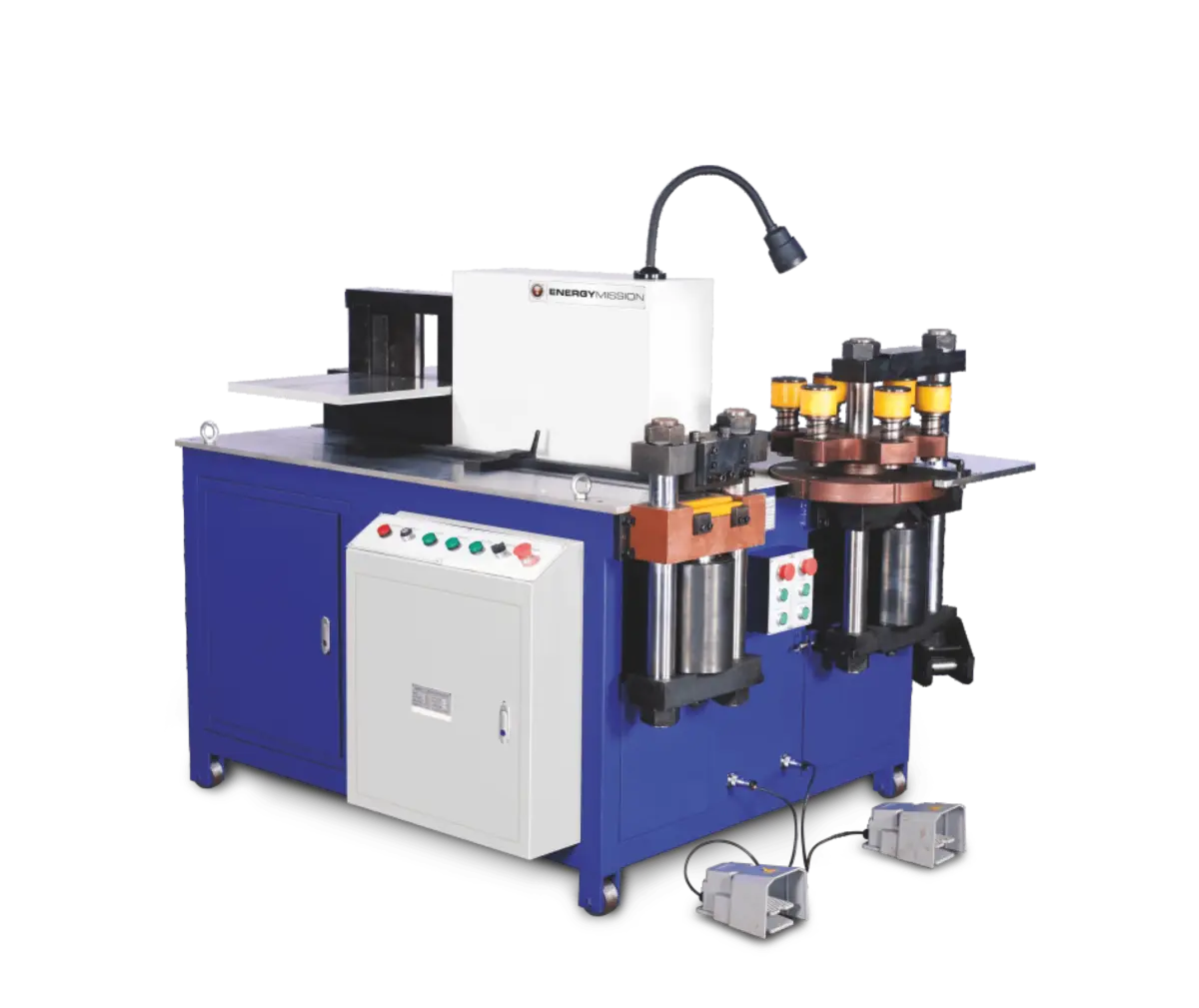

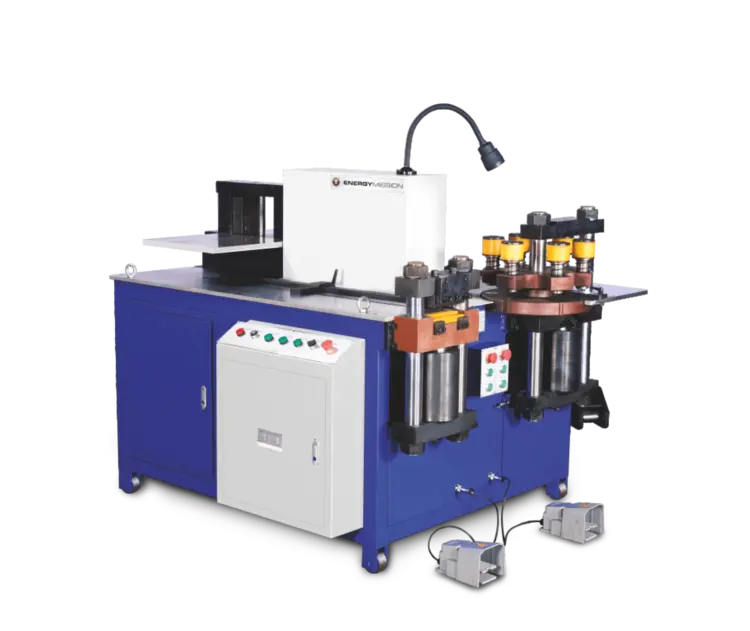

BMT EM BUSBAR 80
The Hydraulic Busbar Machine is an advance technology machine for getting more productivity, accuracy & easy bending operation. The NC controller offers quick & easy programming of complex bending jobs. With its capabilities of bending, cutting and punching, for a complete range of solutions to projects that you would like to fabricate.
BUSBAR 80
SALIENT FEATURES-
BUSBAR is designed to give effective solution for BUSBAR cutting, bending, & punching in one machine.
Manual turret punching design with six stations which avoid time to change Die and Punch in punching station.
Direct shearing avoids any waste of material
Horizontal bending operation suitable for complex & Z type bending
Manual Gauge sto0pper for shearing & punching station.
Parallel operation for all three workstations.
STANDARD ACCESSORIES-
Main drive motor
Electrical control panel
Hardened & grounded HCHCr blade on shearing station
Six different type of punches and dies mounted in punching station
One die & two punches suitable to bending station
TECHNICAL SPECIFICATIONS-
PUNCHING STATION
Size of Punching-----------------------------------------------------------------------------.16" x 1.4"
Max. Punching Copper-----------------------------------------------------------------------1.4" x .47"
Max Punching Aluminum-------------------------------------------------------------------1.1" x .55"
Capsule Punching Copper--------------------------------------------------------------------.82" x .66" x .55"
Capsule Punching Aluminum---------------------------------------------------------------.82" x .66" x .62"
Number of Stroker per Minute--------------------------------------------------------------4
Number of Turret----------------------------------------------------------------------------6
SHEARING STATION
Shearing Copper-----------------------------------------------------------------------------.55" x 9.8"
Shearing Aluminum-------------------------------------------------------------------------.62" x 9.8"
BENDING STATION
Horizontal Bending Copper----------------------------------------------------------------.55" x 10"
Horizontal Bending Aluminum----------------------------------------------------------.62" x 10"
Vertical Bending Copper (optional)-----------------------------------------------------.55" x 4.7"
Vertical Bending Aluminum(optional)--------------------------------------------------.62" x 4.7"
OPTIONAL TOOLING
Embossing Tool
Twisting Tool
Numerical Control (NC)
TECHNICAL DATA
Mode of Operation: Parallel
Gauging: Manual
Motor Power: 7.5 HP x 3 Nos.
Overall Dimensions: (LxWxH) Approx. 98" x 78" x 66"
Machine Weight: 4.1 Tons
Oil Tank Capacity: 235 Litre
