BMT EM Ironworker- 80

Product Description-

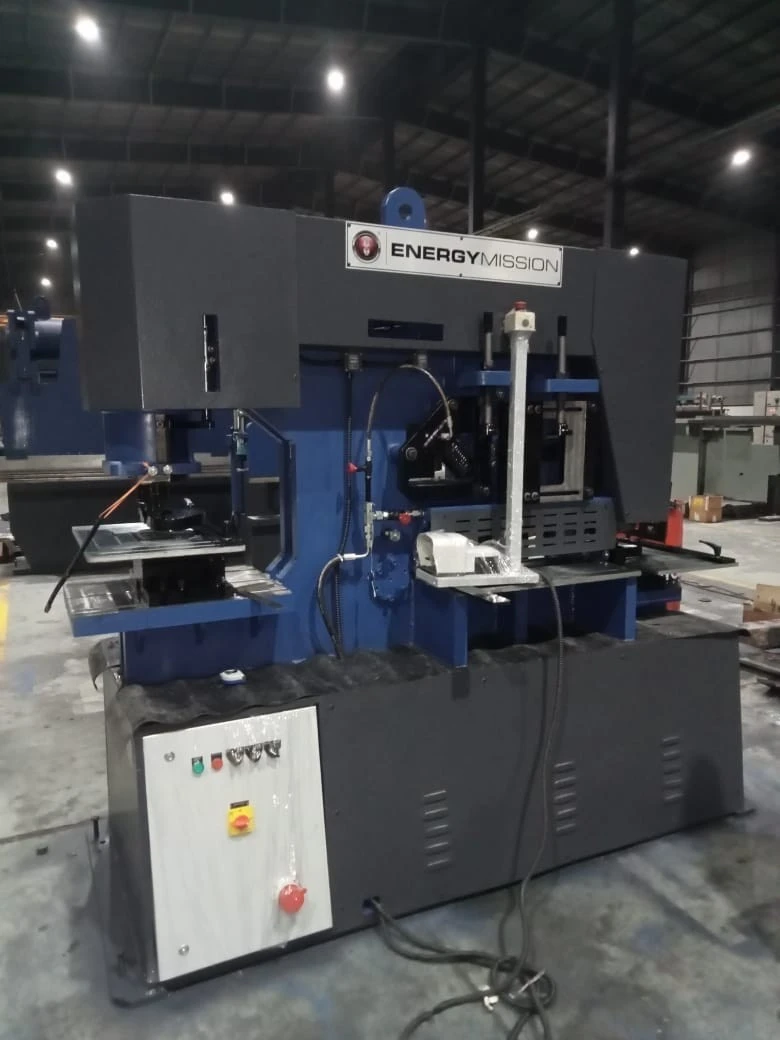

Energy Mission Hydraulic Ironworker Machines (SIGMA) is designed to give an effective solution to all the cutting and punching problems of flat and Section with satisfactory work quality from robust and compact machine.

Unique compact design by using ultrasonically tested steel plates.
Five work station catering ''7'' different operation.
Parallel operation of punching station with other work station gives higher productivity.
Direct shearing avoids any waste of materials.

Type of cuttings possible through our Hydraulic Iron worker Machine :

Flat Cutting
Angle Cutting
Channel Cutting
Square Bar Cutting
Round Bar Cutting
Notching
Punching

Components :

Ultrasonically tested steel plates
Punching station
Angle, channel, and flat shearing station
Notching station

Features :

Unique compact design by using ultrasonically tested steel plates
Five work station catering ''7'' different operation
Parallel operation of punching station with other work station gives higher productivity
Direct shearing avoids any waste of materials



Standard Accessories:

Main drive motor
Electric control panel
Fine stroke adjustment rod with limit switch
Manual job clamping device
Pair of foot switch
Blade for angle cutting, channel cutting, flat cutting & notching
Optional manual back gauge
Optional blade for round bar cutting, square bar cutting, t section cutting
Optional high speed system for more number of stroke/minute
Optional extra blade for channel cutting and punching

TECHNICAL SPECIFICATIONS:
PUNCHING
Diameter x max Thickness................................................................................................................................................................1.1" x 0.7"

Diameter and Thickness...................................................................................................................................................................1.4" x 0.4"

Maximum Diameter.......................................................................................................................................................... ..............1.9" x 0.4"

Cylinder Stroke..........................................................................................................................................................................................3.5"

Stroke Count In (20mm)........................................................................................................................................................12 Strokes/min

Throat Depth............................................................................................................................................................................................13.7"

Working Height........................................................................................................................................................................................39.3"

Clamping Arrangement....................................................................................................................................................................Hydraulic
ANGLE SHEAR
Angle Section (90*)................................................................................................................................................................5.9"x 5.9" x 0.4"

Angle Section (45*)...........................................................................................................................................................................3.1" x .31"

Working Height........................................................................................................................................................................................43.3"
SHEET METAL SHEAR
Sheet Metal.....................................................................................................................................................................................12.9" x 0.7"

Sheet Metal......................................................................................................................................................................................18.8"x0.3"

Blade Length................................................................................................................................................................................................19"

Shearing with Angle.................................................................................................................................................................5.9" x 5.9" x .47

Working Height........................................................................................................................................................................................34.2"
NOTCHING
Thickness....................................................................................................................................................................................................0.3"

Width...........................................................................................................................................................................................................3.1"

Depth...........................................................................................................................................................................................................3.9"

Working Height........................................................................................................................................................................................34.2"

TECHNICAL DETAIL-
L x W x H..................................................................................................................................................................................76" x 39" x 82"

Horse Power.................................................................................................................................................................................................7.5

Weight...........................................................................................................................................................................................2.9 US tons
