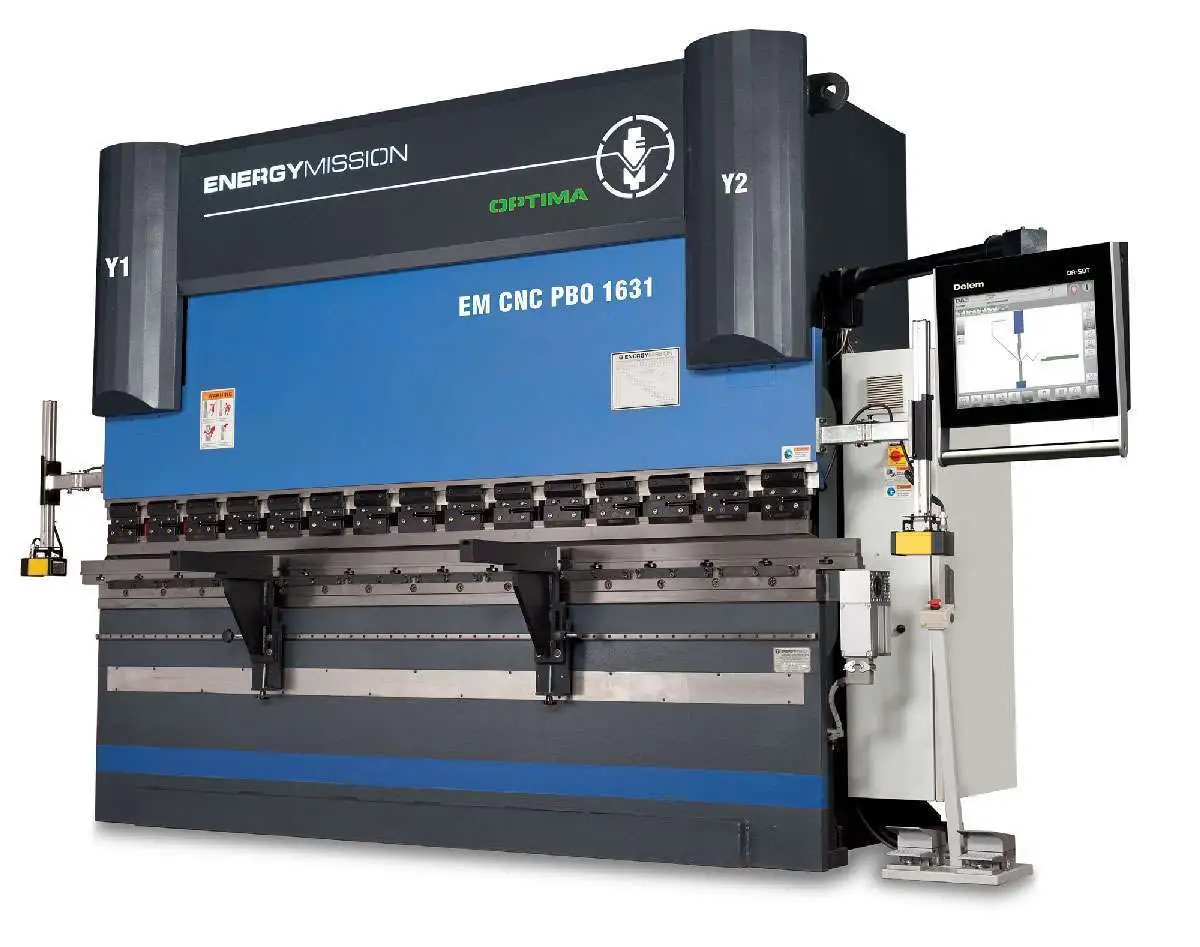

Energy Mission Series Optima/Magnum

SALIENT FEATURES------INTELLIGENT GREEN POWER
Individual servo motor in combination of hyd. Pump
controls the accurate positioning of Y1 & Y2 axis

Energy Efficient - Reduce power consumption by 45% ~50%
Fast up & down beam speed up to 220mm/sec,
Pressing speed up to 16 mm/sec
CybTouch 12PS Controller from CYBELEC Switzerland - 4+1 Axis machine with Accurate, high speed
back gauge reduces positioning time and easily
handles bending of complex parts
Rigid upper beam guide on 12-point roller bearings - The frame is machined on FLOOR BORING MACHINE
ensuring single reference accurate machining
Very low noise level, Silent & smooth machine
operation
Stable hydraulic oil temperature ensures consistent
accuracy
Lesser oil quantity
Accuracies- Press Beam Depth Accuracy: ± 0.01mm
Press Beam Depth Repeatability: ± 0.01mm
Back Gauge Accuracy: ± 0.1mm
Back Gauge Repeatability: ± 0.1mm

CONTROL TECHNOLOGY

The CNC Press Brake is a modern press brake with precise automation & state of the art technology for achieving best results on fabrication jobs. It eliminates the need of adjusting bending degrees & marking of bending positions on the job.

The operator can make program with different degrees & different gauge position. In turn, we can save the time on material handling & job marking.  The operator can finish the complete job in one sequence even if different bending degrees & different edge dimensions are required.

Hence it is enhancing the productivity of machine. It can save total 200 product programs & each program having 24 bends. These programs can be saved & recalled again for future use.
