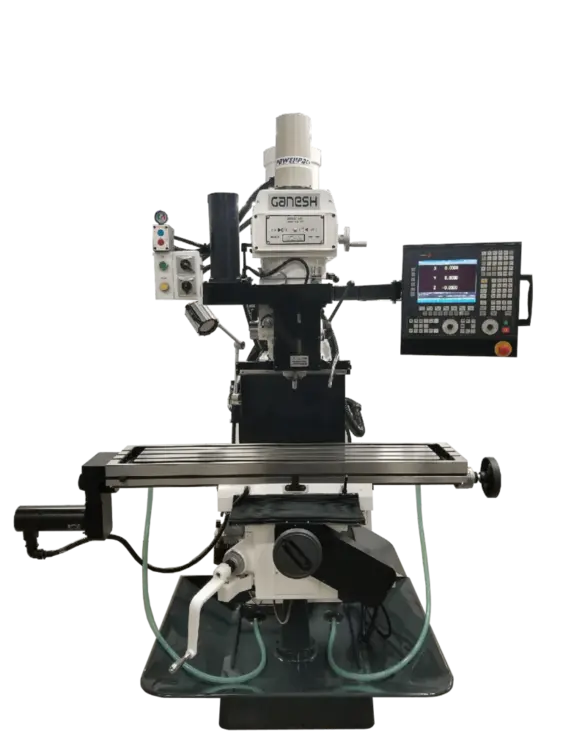

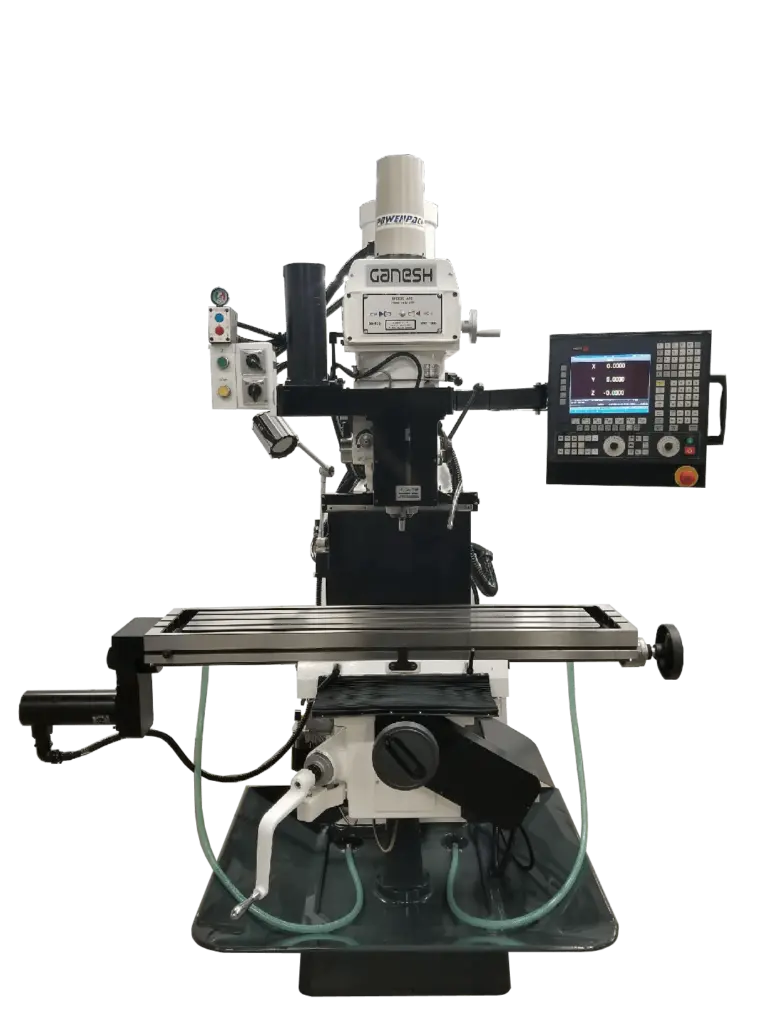

Expand Machinery Ganesh GMV 4 CNC

TABLE

Table Size (W x L)

12″ x 54″

(254 x 1372mm)

Table Travel with CNC Control

33.5″

(850mm)

Travel Capacity

1200lbs

T-Slot Width (3 T-Slots)

5/8″ T-Slots with ground reference edges (15.9mm wide)


MACHINE TRAVELS & CAPACITY

Table Travel – X Axis

34.75″

Cross Travel – Y Axis

14″

Knee Travel

16″

(406mm)

Ram Travel

17.7″

(450mm)

Spindle Nose-to-Table Surface Travel

2″ – 18″

(50 – 457mm)

Ballscrew ground pitch (X & Y)

0.2″ per rev.

Adjustable scale ring resolution

0.001″

(0.0254mm)

SLIDE WAYS

Hardened & Grounded Meehanite® Processed Cast Iron

Longitudinal Table – Z Axis

Hardened & Ground Dovetail Ways

Cross Slide to Knee – Y Axis

Hardened & Ground Square Box Ways

Knee to Column

Hardened & Ground Square Box Ways


SPINDLE HEAD

Head Tilt (Left-to-Right)

90° – 0 – 90°

Head Tilt (Front-to-Back / Up-Down)

45° – 0 – 45°

Head Swivel

360°

Spindle Motor

5-HP  /  3 Phase  208 – 240 vac.

Spindle Taper

NMTB #40 N.S. Taper

Spindle Runout

0.0002″ maximum runout (0.005mm)

Spindle Bearings

Fafnir ABEC-7 Matched set of Class-7 Bearings

Variable Speed Drive – Dual Range

80 – 520 rpm (low-range)  /  600 – 4000 rpm (high-range)

Note: 5,000 RPM Electronic Variable-Speed Spindle
available with the optional AC Inverter Spindle Head

QUILL

Quill Travel – CNC Z-Axis

5″  (127mm) Manual & Power Feed w/o 3rd CNC Axis

Quill feeds (per rev.) with Trip Release – Inch

0.0015″ /  0.003″  /  0.006″

Quill feeds (per rev.) with Trip Release – Metric

0.04mm /  0.08mm /  0.16mm

Quill Diameter

4.13″                          (105mm)

DIMENSIONS & WEIGHT

Power Requirements 3-Phase

208 – 220 vac.  ±5% @ 22 amps (440 vac optional)  /
110 vac 20-am dedicated service required for CNC Control

Coolant Capacity

11 Gallons.

(41 liters)

Machine Weight

1600 Kgs
