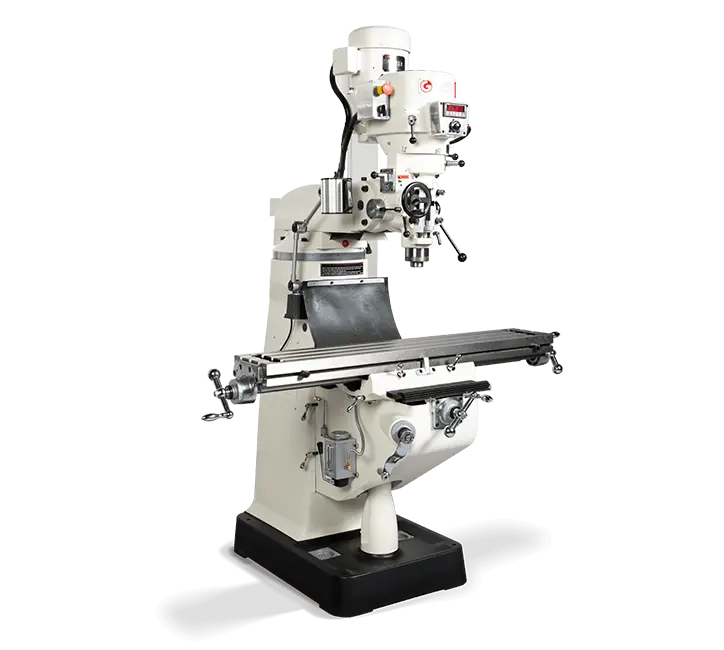

Expand Machinery Ganesh GMV-2

TABLE

Table Size (W x L)

9” x 50”

(230 x 1270mm)

T-slot Width / Quantity

5/8” / 3  on 2.5” centers

Table Load Capacity

440 lbs.

(200kg)

Table Load Capacity (Evenly Distributed)

900 lbs.

(408kg)

Table Surface to Floor Dimension

32″ – 48”

(820-1226mm)


MACHINE TRAVELS & CAPACITY

Table Travel – Longitudinal – X Axis

38”

(966mm)

Table Travel with Power Feed

33.07”

(840mm)

Cross Travel – Y Axis

12”

(305mm)

Vertical Knee Travel – Z Axis

16”

(406mm)

Overarm (ram) Travel

12”

(305mm)

Overarm Swivel

360°

Spindle Nose-to-Table Surface

0” – 18.5”

(0 – 469mm)

Spindle Centerline to Column Face

6.75” – 18.75”

(171 – 476mm)

Leadscrews with ground pitch surface (X & Y)

0.200” per rev. (ballscrews optional)

Adjustable scale ring display resolution

0.001”

(5mm)

SPINDLE HEAD (VARI-SPEED)

Spindle Motor

3-HP  /  3-Phase 220 volts  (440 Optional)

Spindle Taper (hardened & ground)

R-8

Spindle Runout

0.00008” maximum runout  (0.002mm)

Spindle Bearings   ABEC-7 matched set

Class-7 Bearings

Variable Speed Spindle

60 – 4,500 RPM

Head Tilt (Left-to-Right)

90° – 0 – 90°

Head Tilt (Front-to-Back / Up-Down)

+45° – 0 – -38°

Head Swivel on Turret

360°

QUILL

Quill Diameter

3-3/8”

(85.725mm)

Quill Travel – Manual & Power Feed

5”

(127mm)

Quill feeds – With Trip Release – Inch

0.0015”  /  0.003” /  0.006”

Quill feeds – With Trip Release – Metric

0.04mm  /  0.08mm  /  0.16mm

DIMENSIONS & WEIGHT

Machine Weight

2,222 lbs.

(1010 Kgs)

Electrical Requirements – 220 volts

3-Ph  /  60 Hz   /  9.5 amps
