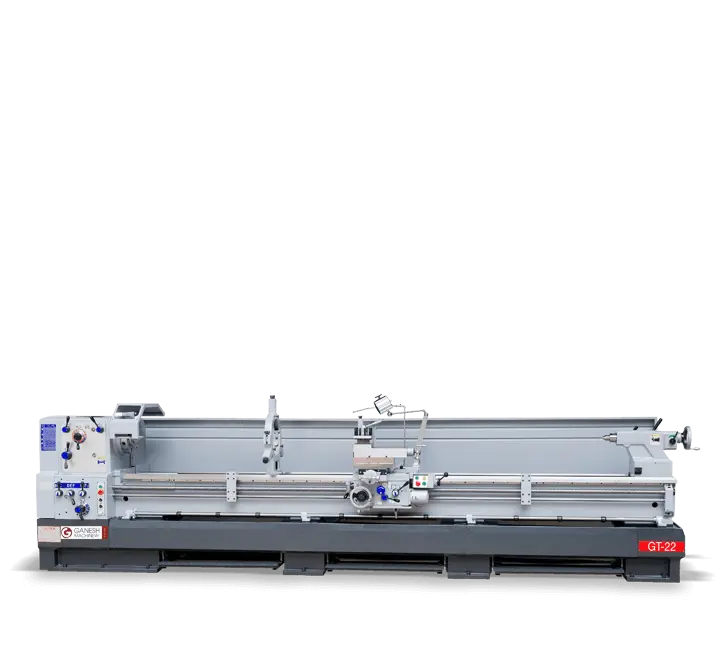

Expand Machinery Ganesh GTW-22

CAPACITY & DIMENSIONS

Swing over Bed

22″

(560mm)

Center Height

11″

(280mm)

Swing over Cross Slide

14 1/8″

(360mm)

Swing thru Gap

29 3/8″

(745mm)

Length of Gap in front of D1-11 face plate

6 1/2″

(165mm)

Bed Width

16 1/8″

(400mm)

SPINDLE

Spindle Motor Horsepower

15 HP

12kw

Spindle Speeds – 12 speeds 15 – 1200rpm (high to low)

Spindle Bore

4 1/8″

(105mm)

Spindle Nose

D1-11 Camlock

(A1-11 optional)

Spindle taper in Spindle Nose

MT-8

Morse Taper #8

Spindle taper reduction sleeve provided

MT-5

MT-8 to MT-5

Spindle Max Weight Capacity (Chuck Only)

660 lbs

(300 kgs)

Spindle Max Weight Capacity (Chuck and Tailstock)

1650 lbs

(750 kgs)

Spindle Max Weight Capacity (Chuck, Steady Rest & Tailstock)

3300 lbs

(1500 kgs)


CARRIAGE

Cross Slide Travel

14.96″

(380mm)

Cross Slide Width

7 3/32″

(180mm)

Cross Slide lead screw pitch

.200″ / rev

Cross Slide resolution per division

0.001″

(on diameters)

Carriage Lead Screw Diameter

1 1/2″

(38mm)

Carriage Lead Screw Pitch

4 TPI

(6mm pitch)

COMPOUND

Compound Top Side Travel

10″

(255mm)

Compound Top Slide Width

4 11/32″

(110mm)

Cutting Tool Height Maximum

1.0″ x 1.0″

(25mm x 25mm)

TAILSTOCK (2 SPEED QUILL ADVANCE)

Quill Diameter

2 15/16″

(75mm)

Quill Stroke

6 5/16″

(160mm)

Quill Taper

MT-5

Morse Taper #5

Quill advance – 2 gear selected advance speeds

1:1  2:1

Tailstock body set-over adjustment

±0.04″

±1mm

THREAD CUTTING

Thread Cutting Range – 60 inch pitches

2 –112 TPI

2 –112 TPI

Thread Cutting Range – 60 metric pitches

0.2 –14mm

0.2 – 14mm

Thread Cutting Range – 50 diametral pitches

4 –112 D.P.

4 – 112 D.P.

Thread Cutting Range – 50 module pitches

0.2 –7 M.P.

0.2 –7 M.P.


FEEDS

Feeds – Longitudinal – 50 Feeds

0.0014″ – 0.0387″/ rev.     (0.037 – 1.04mm / rev)

Feeds – Cross – 50 Feeds

0.0007″ – 0.01935″/rev.    (0.0185 – 0.52mm/ rev)

Coolant System

1/8 HP Pump Motor  /  5 Gallon (20L) Tank Capacity

Power Requirements

220 vac.  /  3 Phase  /  40 Amps (440 vac optional)
