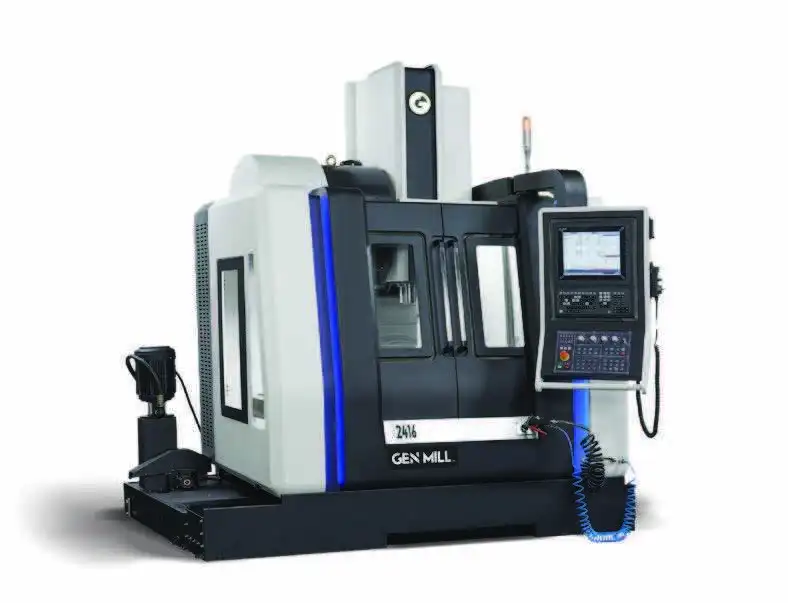

24.01″ X 15.75″ 3 AXIS HIGH SPEED VERTICAL MACHINING CENTER
SPECIFICATIONS
Air Service Requirements
85 psi @ 14-scfm
Connected Load Electrical Requirements
25 KVA / 220vac ±5%, 60-Hz
Coolant Capacity
68 gallons, 256 liters
Floor space requirements (W x D x H)
87” x 73” x 113”, 218x186x288cm (add 44” for conveyor)
Shipping dimensions (W x D x H)
97” x 91” x 101”, 246x229x256cm
Machine Weight
9,923 pounds, 4,500 kg
Warranty – 1-year machine warranty
3-year Mitsubishi control, motors, & drive warranty
24 Tool High Speed Double Arm ATC
1,417 Inch per Minute Rapid Rates
12,000 RPM Double-Ground “Big-Plus” Spindle
300-PSI Through-the-Tool Coolant System
Spindle Chiller for Consistent Thermal Stability
2,700 Block Look-Ahead High-Speed Machining
AXIS TRAVEL
X-Travel
24.01” 610mm
Y-Travel
15.75” 400mm
Z-Travel
17.72” 450mm
Spindle Nose to Table Surface
5.11”– 22.83” 130 – 580mm
Spindle Center to Z-axis way covers
15.35” 390mm (throat dimension)
TABLE
Table Size (LxW)
25.59” x 15.75” 650mm X 400mm
T-slot width (3 T-slots total)
18mm on 100mm centers
Max. Table Load
882 lbs 400 kgs load
SPINDLE
Spindle Motor – S1/S2/S3=5.5/7.5/11kW
15-HP S3 Power, 10-HP 30-min duty rating
Spindle Speed – Mitsubishi Inline Direct-Drive
12,000rpm (15,000rpm optional)
Tool Type
CAT #40 Taper BT #40 optional
Spindle Taper Material / Hardness
SCM415 / HRC 58-62
Spindle Runout
≤ 0.000040” T.I.R
Spindle Bearings – Front
95mm NSK 70BNR P4 class-7 bearings x2
Spindle Bearings – Rear
95mm NSK 70BNR P4 class-7 bearings x2
Retention System / Holding Capability
Bellville Spring Stack 1,650 – 1,760 lbs
Retention Knob (pull stud)
C40-4502H (coolant), Japanese Standard
AXIS FEEDS
Accuracy X, Y, & Z axis (JIS6338)
± 0.0002” / 12” ± 0.005mm over 300mm travel
Repeatability X, Y, & Z axis (JIS6338)
± 0.0001” / 12” ± 0.003mm over 300mm travel
Least Input Command Increment
0.0001” / 0.000040” 0.001mm / (40-millionths in metric)
Rapid Traverse – X, Y / Z
1,417 / 1260 ipm 36m/32m/minute
Cutting Feedrate
0.02 – 393 ipm 10m / minute
Axis Drive Motor Power – X, Y
2.7-HP (2.0kw)
Axis Drive Motor Power – Z
3.35-HP (2.5kw)
Ballscrews – X, Y, Z
32mm ballscrews 12mm pitch
Linear Ways – X / Y / Z
30 / 35 / 35 mm Premium Cross-Roller
TOOL CHANGER
Tool Capacity (24+1)
24-Tool Twin-Arm Hi-Speed Tool Changer
Tool Shank
CAT#40 Taper BT#40 optional
Tool Change Time
2.2-seconds tool-to-tool
Maximum Tool Diameter / w/adjacent tool
5.90” / 3.15” 150mm / 80mm
Maximum Tool Length (from gage line)
11.81” 300mm
Maximum Tool Weight
15 lbs 7kg
Tool Selection / Tool Access
Random access / Bi-directional shortest path
