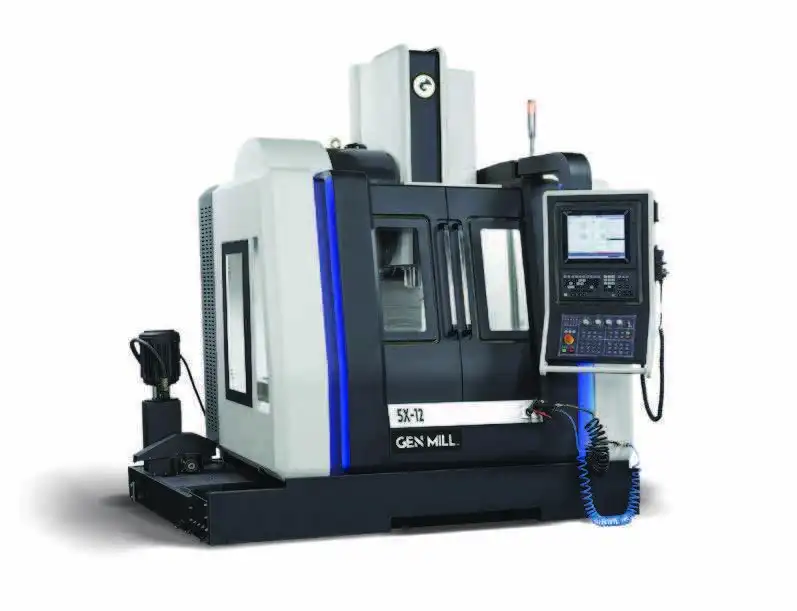

Expand Machinery GenMill 5X-12

AXIS TRAVEL

X-Travel

34.64” 880mm

Y-Travel

23.62” 600mm

Z-Travel

25.59” 650mm

Spindle Nose to Table Surface

4.72” – 18.89”, 120 – 480mm

Spindle Center to Z-axis way covers

22.44” 570mm (throat dimension)

ROTARY TABLE

Platter Diameter

Ø 12.6” Ø 320mm

Center Bore Diameter

Ø 50 H7

T-slot width / Number

12 H7 / 4, Hardened & ground table & T-slots

Guide block width

18mm

Maximum Work-Table Load

330 lbs (“A” Axis at 0-10 degrees)
220 lbs (“A” Axis at 10-90 degrees)

Maximum Part Swing

Ø16.3” Ø 414mm

SPINDLE

Spindle Motor – S1/S2/S3 =11/15/18.5kw

25-Horsepower Peak, 20-HP 30-minute duty-rating

Spindle Speed – Mitsubishi Inline Direct-Drive

12,000rpm (15,000rpm optional)

Spindle Torque

90 ft-lb @ 1,500rpm

Tool Type

CAT #40 Taper BT #40 optional

Retention Knob (Pull Stud)

C40-4502H (coolant)  C40-4502S (solid)

Spindle Runout

≤0.000040 T.I.R.

Spindle Bearings – Front

110mm NSK 70BNR, 2 – P4 class-7 bearings

Spindle Bearings – Rear

110mm NSK 70BNR, 2 – P4 class-7 bearings

Retention System/Holding Capability

Bellville Spring Stack, 1,650 – 1,760 lbs

Retention Knob (pull stud)

C40-4502H (coolant) Japanese Standard

AXIS FEEDS

Accuracy X, Y, & Z Axis (JIS6338)

± 0.0002” / 12” ± 0.005mm over 300mm travel

Repeatability X, Y, & Z Axis (JIS6338)

± 0.0001” / 12” ± 0.003mm over 300mm travel

Least Input Command Increment

0.0001” / 0.000040” 0.001mm / (40-millionths in metric)

Rapid Traverse – X and Y

1,417 ipm, 36m / minute

Rapid Traverse – Z

1,260 ipm, 32m / minute

Cutting Feedrate

0.02 – 393 ipm, 10m / minute

Axis Drive Motor Power – X, Y, Z

5-HP, 3.5kw

Ballscrews – X, Y, Z

40mm ballscrews with 12mm pitch

TOOL CHANGER

Tool Capacity (40+1)

40 Tool Twin-Arm, Chain-Drive Storage Rack

Tool Shank

CAT#40 Taper BT#40 optional

Tool Change Time

2.8-seconds tool-to-tool

Maximum Tool Diameter / with adjacent tool

5.90” / 3.15” 150mm / 80mm

Maximum Tool Length / Weight

11.81” / 15 lbs 300mm 7kg

Tool Selection / Tool Access

Random Access / Bi-Directional

SPECIFICATIONS

Air Service Requirements

85 psi @ 14-scfm

Coolant Capacity / Pressure

97 gallons / 300 psi, 367 liters / 20-bar

Connected Load Electrical Requirements

38 KVA 220vac ±5%, 60-Hz

Floor space requirements (W x D x H)

115” x 82” x 116” (add 48” on left side for conveyor)

Shipping dimensions (W x D x H)

169” x 92” x 96”  (306x231x256cm)

Machine Weight

15,708 lbs   7,120 kgs

Warranty – 1-year machine warranty

3-year Mitsubishi control, motors, & drive warranty
