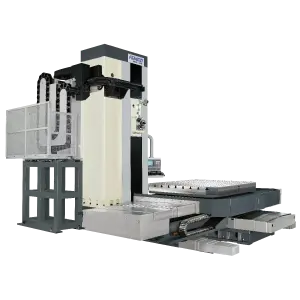

New FEMCO BMC-135R | Horizontal Table Type Boring Mills

Description

Heavy duty, large capacity CNC Horizontal Boring & Milling Machine comes standard with a 50 Taper, 35 HP Geared Head Spindle, Full B Axis Rotary Table, linear scales on X, Y & Z, chip conveyor and a Fanuc CNC control. The BMC-135R has an extended X-Axis travel of 94.49” and incorporates a long W-Axis Bar stroke of 35.43” with a very robust diameter of 5.31”.

- Spindle Speed 1,500 RPM (CT-50 Taper – 30/35 HP)
- Through Spindle Coolant
- 60 Tool ATC
- Full B-Axis Rotary Table (22,046 Lbs. Load Capacity)
- Travels X, Y & Z-Axes: 94.49” x 82.68” x 59.06”
- Travel W-Axis: 35.43”
