New FEMCO BMC-110FT3 | Horizontal Table Type Boring Mills

Description

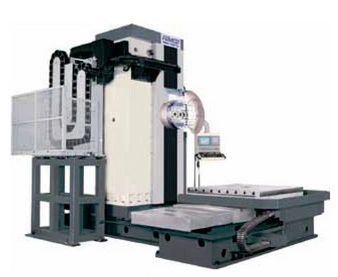

BMC-110FT3 with Facing Head

T-Type Traveling Column CNC Horizontal Boring & Milling Machine with built-in Programmable U-axis Facing and Profile Turning Head as well as an extended X-Axis travel of 118.1”. The U-Axis allows for intricate contouring of inside and outer diameters and is ideal for machining of complex valves, pumps, gearbox housings, as well as tube and joint end preparation. The BMC-110FT3 comes standard with a 50 Taper, 35 HP Geared Head Spindle; Full B-Axis Rotary Table; linear scales on X, Y & Z-Axes; chip conveyor; a Fanuc CNC control, and for added capability, also incorporates a W-Axis Bar for deep boring.

- Spindle Speed 2,500 RPM (CT-50 Taper – 30/35 HP)
- Through Spindle Coolant
- 60 Tool ATC
- Full B-Axis Rotary Table (17,600 Lbs. Load Capacity)
- Travels X, Y & Z-Axes: 118.1”x 80.7”x 59.05”
- Travel U-Axis: 9.055”
- Travel W-Axis: 9.8”
