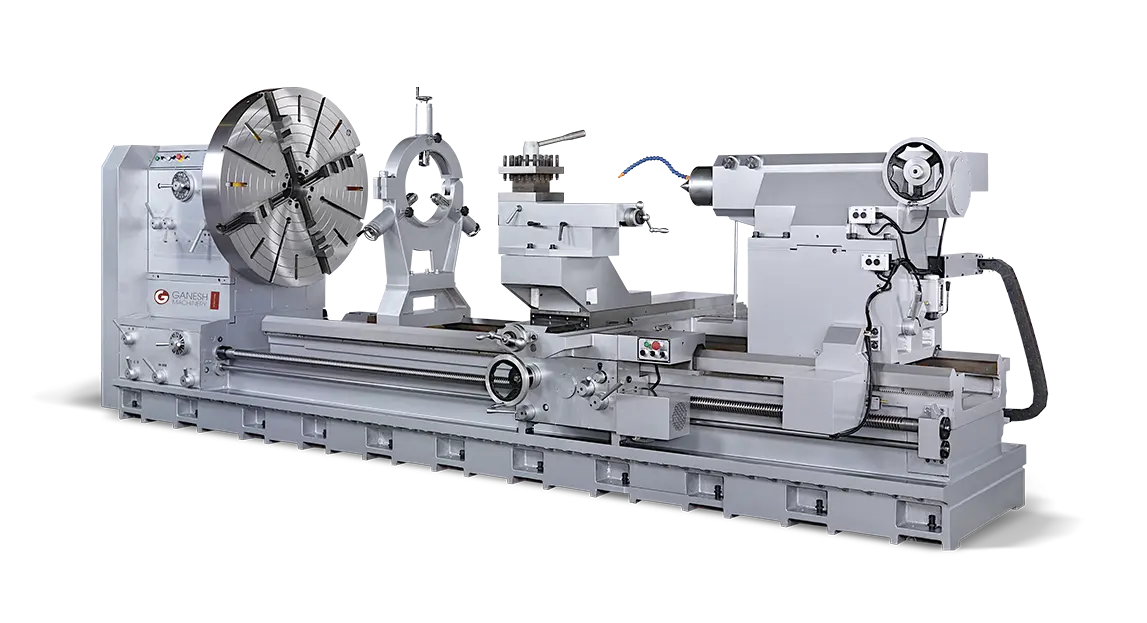

New EXPAND MACHINERY Ganesh GT 44 HK | Big Bore Lathe

Capacity & DimensionsSwing over Bed 44” (1,120 mm)
Swing over Cross Slide 27.95” (710 mm)
Swing thru Gap 55.11” (1,400 mm)
Width of Gap (nose to ways, limited by chuck width) 21.26” (540 mm)
Distance between Centers (dependent upon bed selected) 60” - 315” (1,500 – 8,000 mm)
Bed width 32” (810 mm)
SpindleSpindle Bore (9”,12”,&15” spindle bores optional) 6” (152 mm)
Spindle Nose A2-11 A2-15 & A2-20 optional
Spindle taper in spindle nose MT-7 MT-7
Spindle center height to base 49” (1245 mm)
Spindle Motor Horsepower 40-HP
Spindle speeds 16-gears from 4 – 420 RPM
Spindle Weight Capacity- A2-15 Version
Workpiece weight limit when held in chuck only 4,400 lbs. 2,000 Kg
Workpiece weight limit when held in chuck & tailstock 15,400 lbs. 7,000 Kg
Workpiece weight limit - held in chuck, steady rest & tailstock 19,800 lbs. 9,000 Kg
Carriage -
Cross slide travel 23.62” (600 mm)
Cross slide width 13.75” (350 mm)
Width of Carriage 34.65” (880 mm)
Compound Slide Travel 15.75” (400 mm)
Compound Slide Width 10” (250 mm)
Cutting tool height maximum 1.5” x 1.5” (40 X 40 mm)
Tailstock- (Electric motor driven body & quill)
Quill diameter 7.87” (200 mm)
Quill stroke 11.87” (300 mm)
Quill taper MT-6 MT-7 optional
Tailstock body set-over adjustment ± 0.4” (± 10 mm)
Tailstock body movement Push-Button ½-HP electric motor driven
Quill Drive Push-Button ¼-HP electric motor driven
Thread Cutting- Inch/Metric Gear Box
Lead Screw Diameter (60 mm, 12 mm Pitch metric order) 2.36” X 2 T.P.I
Thread cutting range – 70 inch pitches 0.25-30 TPI
Thread cutting range – 62 metric pitches 1-120 mm
Thread cutting range – 70 diametral pitches 1-120 D.P.
Thread cutting range – 53 module pitches 0.25-30 M.P.
FeedsFeed Rod Diameter 1.26” (32 mm)
Feeds – longitudinal 0.0028”-0.34”/rev (0.072-8.68 mm/rev)
Feeds – cross 0.0014”-0.17”/rev (0.036-4.34 mm/rev)
PowerConnected load - 120-Amps Full-Load Wired 440 vac, (220/440 vac motors)
Rapid traverse motor for cross & longitudinal motion 1-HP (0.75 kw)
Coolant motor / Coolant tank capacity 0.25-HP (0.2 kw / capacity shown on price sheet
