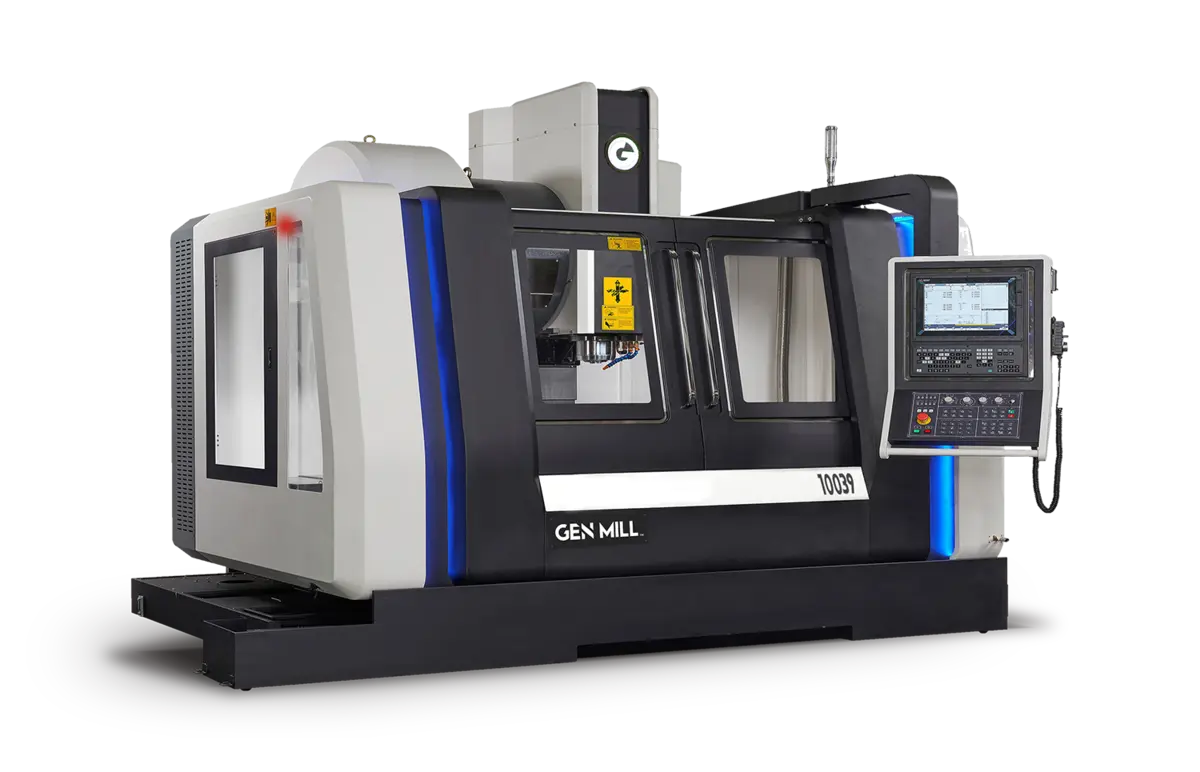

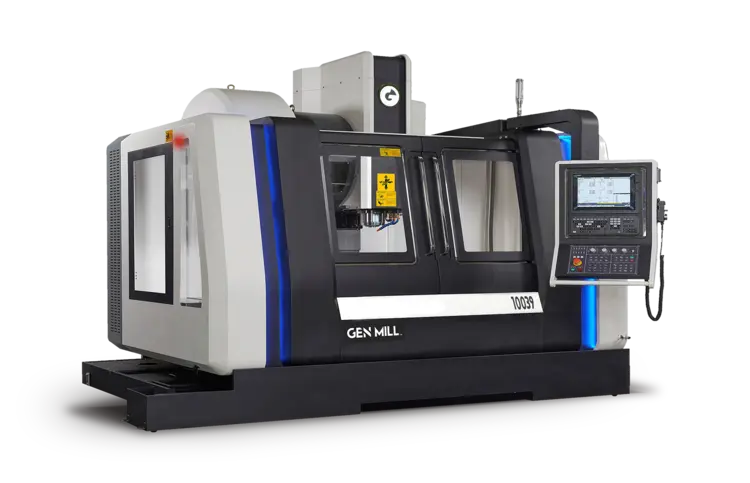

New EXPAND MACHINERY Genmill 10039 | Vertical Machining Centers

AXIS TRAVEL
X-Travel 98.425” 2,500mm
Y-Travel 39.37” 1000mm
Z-Travel 35.43” (39.37” opt.) 900mm (1000mm opt.)
Spindle Nose to Table Surface 9.8”– 45.27” 250 – 1150mm
Spindle Center to Z-axis covers 41.53” 1055mm (throat dimension)
TABLE
Table Size (LxW) 98.42” x 39.37” 2,500mm X 1000mm
T-slots - 5 total 22mm slot width on 1260mm centers
Max. Table Load 7,700 lbs 3500 kgs load
SPINDLE
Spindle Motor – S1/S2=22/26 kW 50-Horsepower Peak 35-HP 30-minute duty-rating
Spindle Speed – Direct-Drive 12,000 rpm 15,000 – 20,000 rpm optional
Tool Type CAT #40 Taper (CAT/BT #40 & # 50 taper optional)
Retention Knob (pull stud) C40-4502H coolant Japanese Standard
Spindle Taper Material / Hardness SCM415 / HRC58-62
Retention System / Holding Capability Bellville Spring Stack 1650-1760 lbs
Spindle Runout 0.000040 T.I.R.
Spindle Bearing Front 110mm NSK 70BNR 10 x 2, P4 class-7 bearings
Spindle Bearing Rear 110mm NSK 70BNR 10 x 2, P4 class-7 bearings
AXIS FEEDS
Accuracy X, Y, & Z axis (JIS6338) ± 0.0002” / 12” ± 0.005mm over 300mm travel
Repeatability X, Y, & Z axis (JIS6338) ± 0.0001” / 12” ± 0.003mm over 300mm travel
Least Input Command Increment 0.0001” / 0.000040” 0.001mm / (40-millionths in metric)
Rapid Traverse – X, Y 472 ipm 12m / minute
Rapid Traverse - Z 393 ipm 10m / minute
Cutting Feedrate 0.02 - 393 ipm 10m / minute
Axis Drive Motor Power – X, Y 10-Hp 7kw
Axis Drive Motor Power - Z 10-Hp 7kw w/brake
Ballscrews – X, Y, Z 63mm ballscrews 10mm pitch
TOOL CHANGER (Specifications Change with 50-Taper Option)
Tool Capacity 40+1 40-Tool Twin-Arm Chain-Drive
Tool Shank CAT#40 Taper (BT#40 & 50 optional)
Tool Change Time 4.3-second tool-to-tool
Maximum Tool Diameter / w/adjacent tool 5.90” / 3.15” 150mm / 80mm
Maximum Tool Length 11.81” 300mm
Maximum Tool Weight 15 lbs. 7kg
Tool Selection / Tool Access Random access / Bi-directional
SPECIFICATIONS
Air Service Requirements 85 psi @ 14-cfm
Coolant Capacity 172 gallons 650 liters
Connected load electrical requirement 47 KVA, 100-amps 220vac ±5%, 60-Hz
Floor space requirements recommended 237” x 146” x 142” 600x370x360cm (add 52” for conveyor)
Shipping dimensions (L x W x H) 248” x 154” x 150” 630x390x380cm
Machine Weight 66,138 pounds 30,000 kg
Machines need stable 220 Volts, 3 Phase – Please use appropriate transformers or voltage stabilizers
