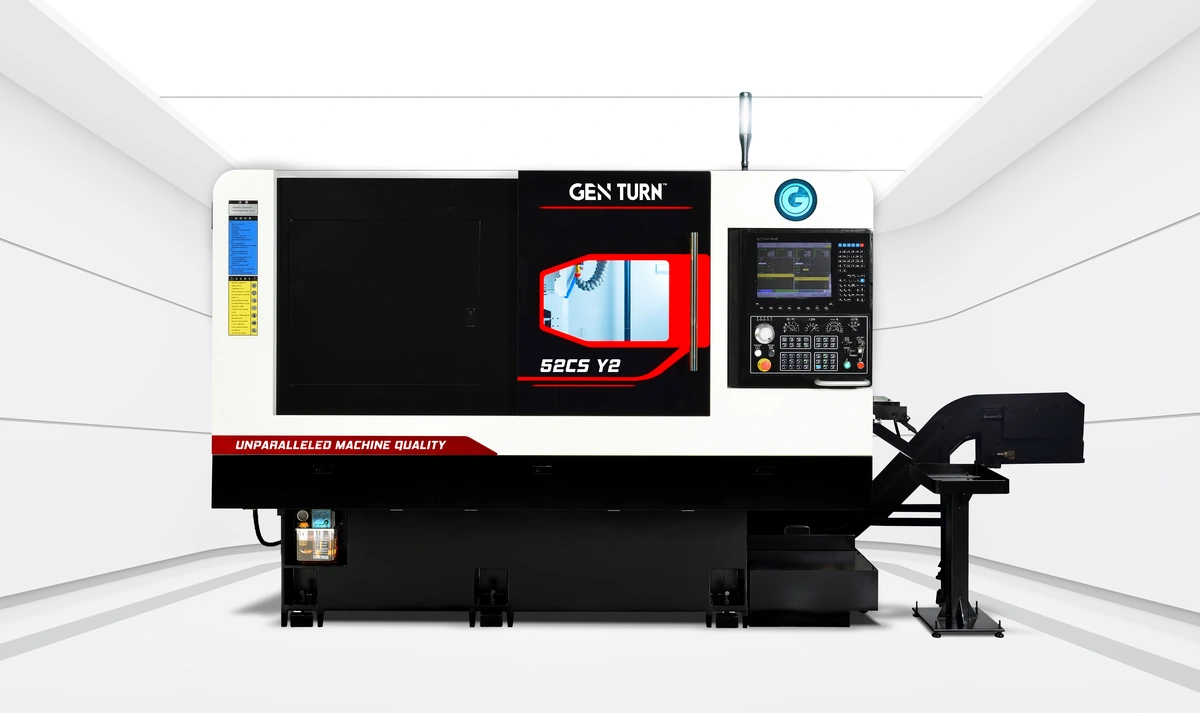

The GENTURN – 52 CS Y2 is an 8-axis 2” (51mm) bar diameter sliding headstock CNC lathe.
The GENTURN- 52CSY2 CNC is a very robust and rigid machine. The heavy ribbed torque-tube box
cast machine weighs over 13,800 pounds making it the heaviest machine in its class!
The GENTURN - 52 CS Y2 lathe features a total of 33-tool stations. The Main Spindle can use 20
tools. There are 6-live cross tools, 4-live axial tools, 6-turning tool stations, and 5-ID tool stations, all in a
gang configuration. It is possible to creatively tool for added capacity by double-tooling ID-tools stations
with dual insert boring bar holders will allow rough and finish boring, boring and turning, boring and
threading, with one tool position: without incorporating a spindle reversal in the program for reduced cycle
time. The Sub Spindle has 13-tool stations including 4-driven stations with 4 live tool holders
included. An additional 4 driven tools can be plugged into the Sub Spindle tool block as needed.
Main Spindle
Maximum RPM / spindle bearing 6,000 RPM
Spindle Motor 10-HP (7.5 kw)
Collet Nose / Spindle Bore Traub TRB-52 / 51 mm (uses TRB-52 collet)
Maximum Barstock Diameter 2” (51 mm)
Maximum Cut Length 4.33” (110 mm)
Spindle Center Height 43.3” (1,100 mm)
Sub Spindle
Sub spindle RPM / spindle bearing 6,000 RPM / 4-bearing Quad-Duplex pair configuration
Sub spindle Motor 6-HP (4.4 kw)
Collet Nose / Spindle Bore Traub TRB-42 / 43 mm (uses TRB-42 collet)
External Air Blast nozzle Included for both main & sub spindle
Finished Parts Ejector & air blast Included for sub spindle
Axes Specifications
X1-axis Travel 8.66” (220 mm)
Y1-axis Travel (true Y-axis, not compound Y) 24.41” (620 mm)
Z1
-axis Travel 16.0” (406 mm)
X2-axis Travel 14.9” (380 mm)
Y2-axis Travel (true Y-axis, not compound Y) 5.11” (130 mm)
Z2
-axis Travel 18.1” (460 mm)
Rapid Traverse Rate – X1, X2, Y1, Z1, Z2 1,181 IPM (30 m/min)
Rapid Traverse Rate – Y2 196 IPM (5 m/min)
Axis Drive Servo Horsepower: X1/Y1/Z1 1-3/4 / 1-3/4 / 1-1/8 HP (1.3 kw /1.3 kw / .85 kw)
Axis Drive Servo Horsepower: X2/Y2/Z2 1-1/8 / 1.0 / 1-1/8 HP (.85 kw / .75 kw / .85 kw)
Minimum input unit 0.0001” (0.001 mm = 40 millionths inch)
Tooling
33-Tool Positions Standard All live tools are gear driven w/ ø42mm bearings – no belts!
Main Spindle Cross Slide Radial live tools 6-ER-20 cross slide live tools, 4,000 rpm, 2.0 HP (1.5 kw)
Main Spindle Front Slide Axial live tools 3-ER-20 front slide live tools, 4,000 rpm, 1.0 HP (0.75 kw)
Main Spindle OD Turning Tool Positions 6 (5x 5/8” + 1x 3/4”) (5x16 mm) + (1x20 mm)
Main Spindle ID Turning Tool Positions 5 ID Tool Bores (25 mm)
Sub Spindle ID Turning Tool Positions 5 ID Tool Bores (25 mm) (back of main tool bores)
Sub Spindle ID Turning Tool Positions 4 ID Tool Bores (Static holders in sub spindle tool block)
Sub Spindle Back Slide Axial live tools 4-ER-20 (can add 4 more) 4,000 rpm, 4.0 HP (3kw)
(1 radial live tool can be substituted on Sub Spindle tool block)
Machine
Machine Weight 13,880 lbs (6,300 kgs)
Coolant Pump Dual 50psi 1-HP Coolant Pumps for main and Sub Spindle
Coolant Tank Capacity 63-gallon coolant tank, with coolant flow confirmation sensor
Lubrication distribution Way lube distributed at 3-6 cc / 15-minute cycle
Hydraulic System – power / capacity 1-HP / 12-gallons (0.75 kw / 46 L)
Machine Power Requirements 220 vac ±5%, 35 kva, 3-phase, 60 Hz, 92 amps
Air Requirements 85-PSI at 10-CFM for parts catcher, parts ejector, & air blas
Parts catcher and finished parts fabric conveyor with parts catcher basket
A-52 “Dead-Length” Collet System for main and A-42 “Dead- Length” for the sub spindle
Automatic belt-style chip conveyor and wheeled chip cart
Sub-spindle programmable air blast, oil flush and finished parts ejector
Automatic Barfeed Interface, Barfeed Connector, Toolbox & Tool Kit
Automatic Power off controller & Air-conditioned electrical cabinet
Dual ¾-hp 50psi Coolant Pumps, with double coolant filtration and a coolant flowmonitor
ER-20 Collet Extensions – Total of 6 single-end ER-20 collet extensions for 25mm toolbores
13 live-tool ER-20 gear-driven collet spindles
