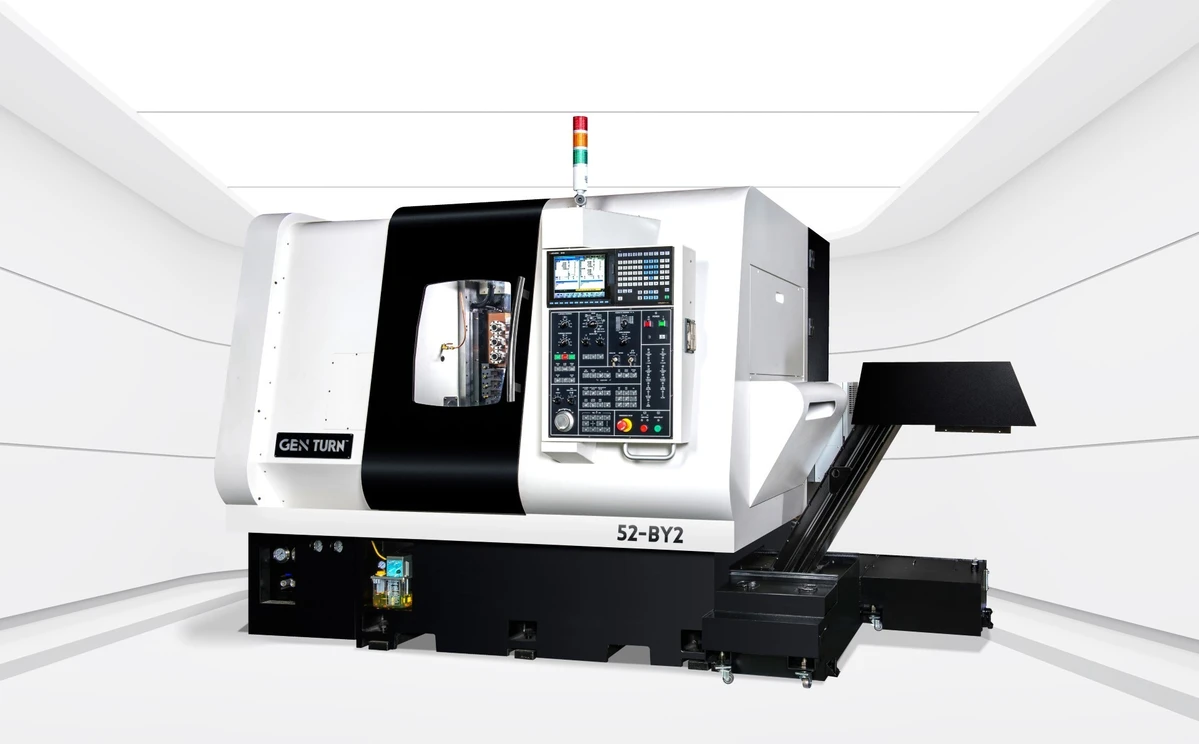

New EXPAND MACHINERY GenTurn 52-BY2 | CNC Metal Lathes

MAIN SPINDLE INTEGRAL BUILT-IN MOTOR-SPINDLE
Maximum bar diameter Inch A2-5 Spindle with 2.008” (51 mm) bar capacity
Collet size / Spindle bearings Type Traub TRB-52 / 5x90 mm ball bearings, 3-front, 2-rear
Maximum spindle speed RPM 6,000 RPM (Integral Motor Spindle)
Servo Spindle motor horsepower Horsepower 15-HP (11 kw) peak, 10-HP (7.5 kw) 30-min. rated
X1, Y1, Z1 AXIS
X1, Y1, Z1 axis servo motor Horsepower X1= 1.3 hp. (1.0 kw) Y1/Z1= 2.0 hp. (1.5 kw)
X1 axis travel Inch 10.63” (270 mm)
Y1 axis travel Inch 18.11” (460 mm)
Z1 axis travel Inch 9.84" (250 mm)
Minimum programmable input Inch 0.00004” resolution (0.001 mm)
X1, Y1, Z1 rapid travel rate IPM 1,181 IPM (30 m/min) / 0.0001 mm resolution
MAIN SPINDLE TOOLING (12 main spindle driven tools can be shared with subspindle)
Number of driven tools # 6 axial & 6 radial driven and “Any-Angle” tools
Driven tool motor power Horsepower 5-HP (3.5 kw)
Driven tool spindle speed RPM 2,500 RPM maximum driven tool spindle speed
Driven tool collet size Size ER-20 collet spindles (up to 1/2” tool shank)
O.D. turning tools #20mm OD
Turning
5 - 20 mm O.D. turning tool holders available
I.D. boring tools # 5 - 25 mm I.D. bores available for tool bushings
SUB SPINDLE INTEGRAL BUILT-IN MOTOR-SPINDLE
Maximum bar diameter Inch 2.008” (51 mm)
Collet size Type Traub TRB-52
Maximum spindle speed RPM 6,000 RPM (Integral Motor Spindle)
Servo Spindle motor horsepower Horsepower 15-HP (11 kw) peak, 10-HP (7.5 kw) 30-min. rated
X2, Y2, Z2 AXIS
X2, Y2, Z2 axis servo motor Horsepower X2/Z2 = 1.3 hp. (1.0 kw) Y2 = 2.0 hp. (1.5 kw)
X2 axis travel Inch 18.89” (480 mm)
Y2 axis travel Inch 18.11” (460 mm)
Z2 axis travel Inch 10.63" (270 mm)
X2, Y2, Z2 rapid travel rate IPM 1,181 IPM (30 m/min)
Minimum programmable input Inch 0.0001” (0.001 mm = 40 millionths of an inch)
Ballscrew diameter MM 25 mm diameter with 10 mm pitch for all axes
SUB SPINDLE TOOLING
Number of axial driven tools # 3 axial driven tools, uses ER-20 collets
Number of radial driven tools # 3 radial driven tools, uses ER-20 collets
Driven tool motor power Horsepower 2.7-HP (2.0 kw)
Driven tool spindle speed RPM 2,500 RPM maximum driven tool spindle speed
Driven tool collet size Size ER-20 collet spindles (up to 1/2” tool shank)
O.D. turning tools # 4 - 20 mm O.D. turning tool holders available
I.D. boring tools # 4 - 25 mm I.D. bores available for tool bushings
COOLANT SYSTEM Gallons 80 Gallon tank, 4-coolant pumps with flow control
ELECTRICAL REQUIREMENT Amps 110-Amps, 42 kva, 220 vac ±5%, 3-phase
AIR REQUIREMENTS PSI 85 psi, 20-cfm, for parts catcher, ejector, oil mist unit
MACHINE WEIGHT Pounds 12,345 pounds (5,600 kgs)
SPECIFICATIONS AND PRICING ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE
