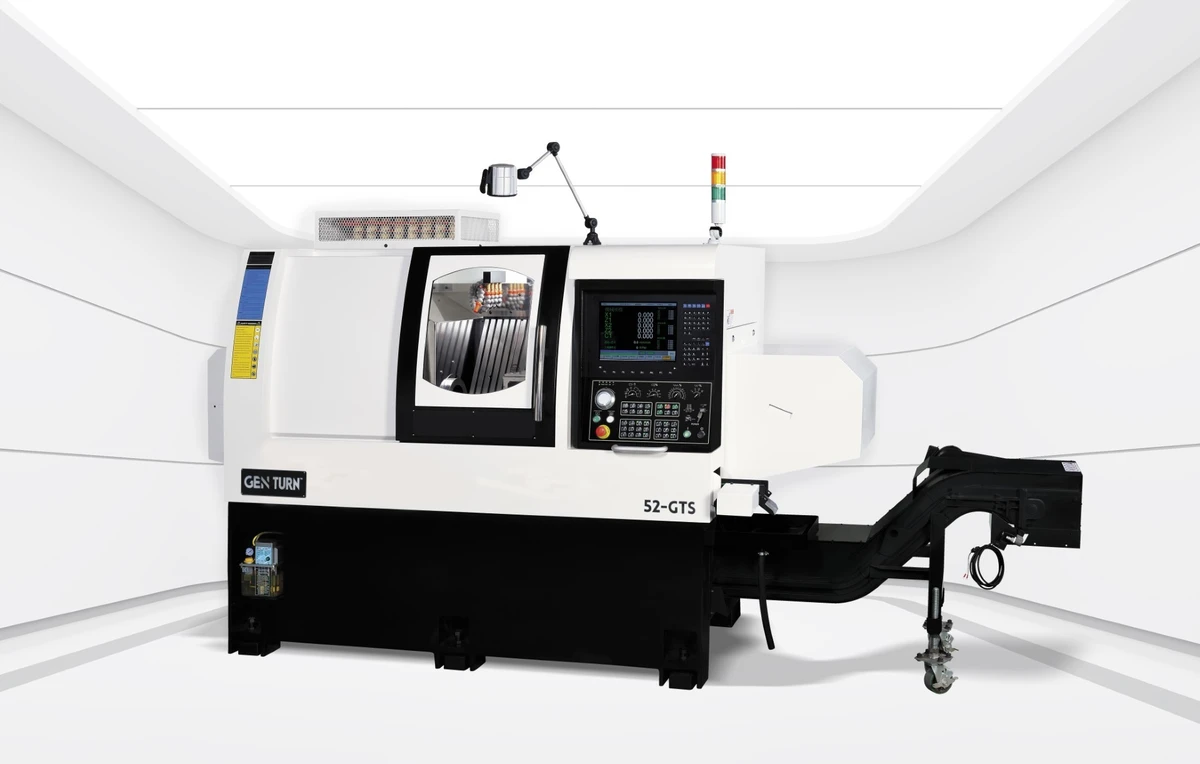

New EXPAND MACHINERY GENTURN 52 GTS | CNC Metal Lathes

Main & Subspindle
Spindle Motors: 11 kw 30-minute rated 15 HP (spindle motor chiller included)
Maximum RPM 6,000 RPM with spindle orient
Spindle Bearing 5-bearing spindle, 3-front ball bearings, 2-rear
Spindle Nose A2-5
Collet Nose Traub A-52 (3J, 16C, adapters available)
Drawtube ID 2.086” (53 mm)
Collet Capacity 2.047” (52 mm)
Spindle Center Height to Cross-Slide 3.464” (88 mm)
Spindle Center Height to Floor 42.2” (1,070 mm)
Machine Axis
Axis Drives & Motors (1.0kw) 1.35-HP Mitsubishi Mel-Pro Motors and Drives
X-axis Travel: Twin cross-slides 13” (330 mm) on both gang slides
Z-axis Travel: Twin opposed spindles 10.63” (270 mm) (on both main and subspindle)
Axis Servo Motor Power X-axis 2.0 HP (1.5 kw), Z-axis 1.5 HP (1.0 kw)
Rapid Travel Speed – X & Z 1,181 IPM (30m/ minute)
Z-Axis Thrust 714 lbs. thrust (8,574 in/lbs.)
Minimum input unit 0.0001” (0.001 mm = 40 millionths of an inch)
Tooling
OD Turning Tool Size 3/4” standard
ID Turning Tool Size 20 mm (¾” available)
Cross-Slide T-Slot dimensions 5-T-Slots on 32 mm centers (10 mm slot, 18 mm base)
Fluid Systems
Coolant Tank Capacity 52 Gallons (210 L) with coolant flow monitor
Coolant Pump Dual ¾-HP, 45-PSI pumps (for main and subspindle)
Hydraulic System: (550psi) 10-gallons (45 liters) ISO VG32 (Mobil DTE-24)
Spindle Oil Cooler System 5.5-gallons (25 liters) ISO 10 (Mobil Velocite No. 6)
Way Lubrication distribution (ISO-VG68) .5-gallons (2-liters) distributed at 3-6 cc / 15-minute cycle
Machine
Net Weight 9,922 lbs. (4,500 kg)
Machine Requirements
Power Requirements 220 vac ±5%, 3-phase, 60-Hz, 63 Amps, 24 Kva
Air Requirements 85-psi, 10-cfm (parts catcher, parts ejector, air blast)
Machines need stable 220 Volts, 3 Phase – Please use appropriate transformers or voltage stabilizers.
