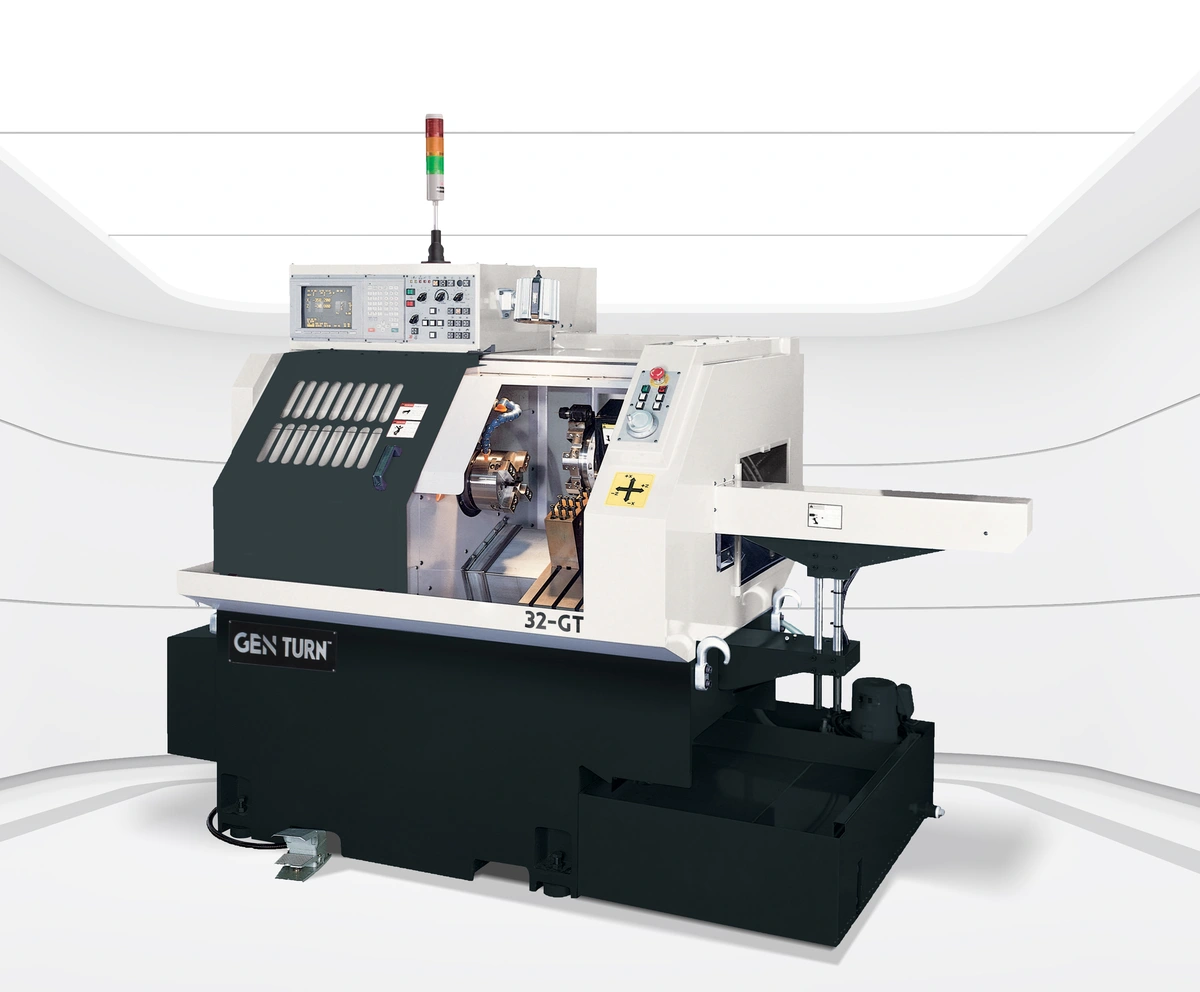

New EXPAND MACHINERY GenTurn 32 GT | CNC Metal Lathes

AXIS TRAVEL
X-Travel 8.46” 215 mm
Z-Travel 5.98” 152 mm
Maximum Turning Diameter / Length 7.87” / 5.5” 200 mm / 140 mm
Swing over Bed ways 12.59” 320 mm
AXIS FEEDS
Rapid Traverse - X, Z 787 ipm 20 m / minute
Rated Cutting Feedrate 236 ipm 6 m / minute
Mechanical Way System - X/Z Box Ways Turcite® coated & pressure lubricated
Slant Bed Angle 20º Slant Bed Angle for Tooling
Axis Drive Motor Power - X-axis 1.0-HP .75 kw
Axis Drive Motor Power - Z-axis 1-1/3-HP 1.0 kw
Ballscrew Diameter - X, Z 32 mm
Positioning Accuracy - X/Z ±0.00015” ±0.004 mm
Positioning Repeatability - X/Z ±0.00008” ±0.002 mm
Least Input Command Increment 0.0001” / 0.000040” 0.001 mm / (40-millionths in metric)
SPINDLE
Spindle Nose Mount A2-5
Spindle Speed 6,000
Maximum Tapping Spindle Speed 2,000 rpm
Maximum Bar Capacity 1-1/4” 32 mm
Spindle Bore 34 mm
Spindle Bearing – inside diameter 70 mm (80 mm optional)
Spindle Motor Power – 3.7/5.5 kw 7.5-HP 5.5 kw (10-HP 7.5kw spindle motor optional)
Spindle Motor Torque 26 ft. lbs. 35 Nm
Spindle Motor Drive Coupling Belt Drive
Spindle Runout ≤ 0.000040” T.I.R.
TOOLING PLATE & TOOL SYSTEM
Tool Plate Overall Dimensions 8.66” x 36.45” 220 mm x 706 mm
Tool Plate T-Slot Dimensions 21 mm base & 12 mm neck width,
8 mm base height /17 mm total
T-Slots 3 T-Slots on 63 mm centers
Turning Tool Shank Size 20 mm ¾” square shank
Internal Tool Shank Size 32 mm 1-1/4” (25 mm for optional tool turret bores)
Optional Driven Tool Horsepower (.75 kw) 1-Horsepower with 2:1 speed reduction for increased torque
Optional Driven Tool Collet Size (1/2”) 2-ER20 collets in a hydraulic positioned upper/lower format
SPECIFICATIONS
Air Service Requirements 85 psi @ 5-scfm 5.5 Kg/cm2
Electrical Requirements - connected load 10 kva, 28-Amps 220 vac ±5%, 60-Hz
Coolant Tank Capacity / Motor Power 21-gallons / ½-HP 80-liters / 2-amps
Lubrication Pump 150 watts
Hydraulic Pump Motor / Pressure 1-HP / 500 PSI .75 kw / 32-bar
Machine Weight 4,850 pounds 2,200 kg
Warranty – 1-year machine warranty 3-year Mitsubishi control, motors, & drive warranty
Machines need stable 220 Volts, 3 Phase – Please use appropriate transformers or voltage stabilizer
