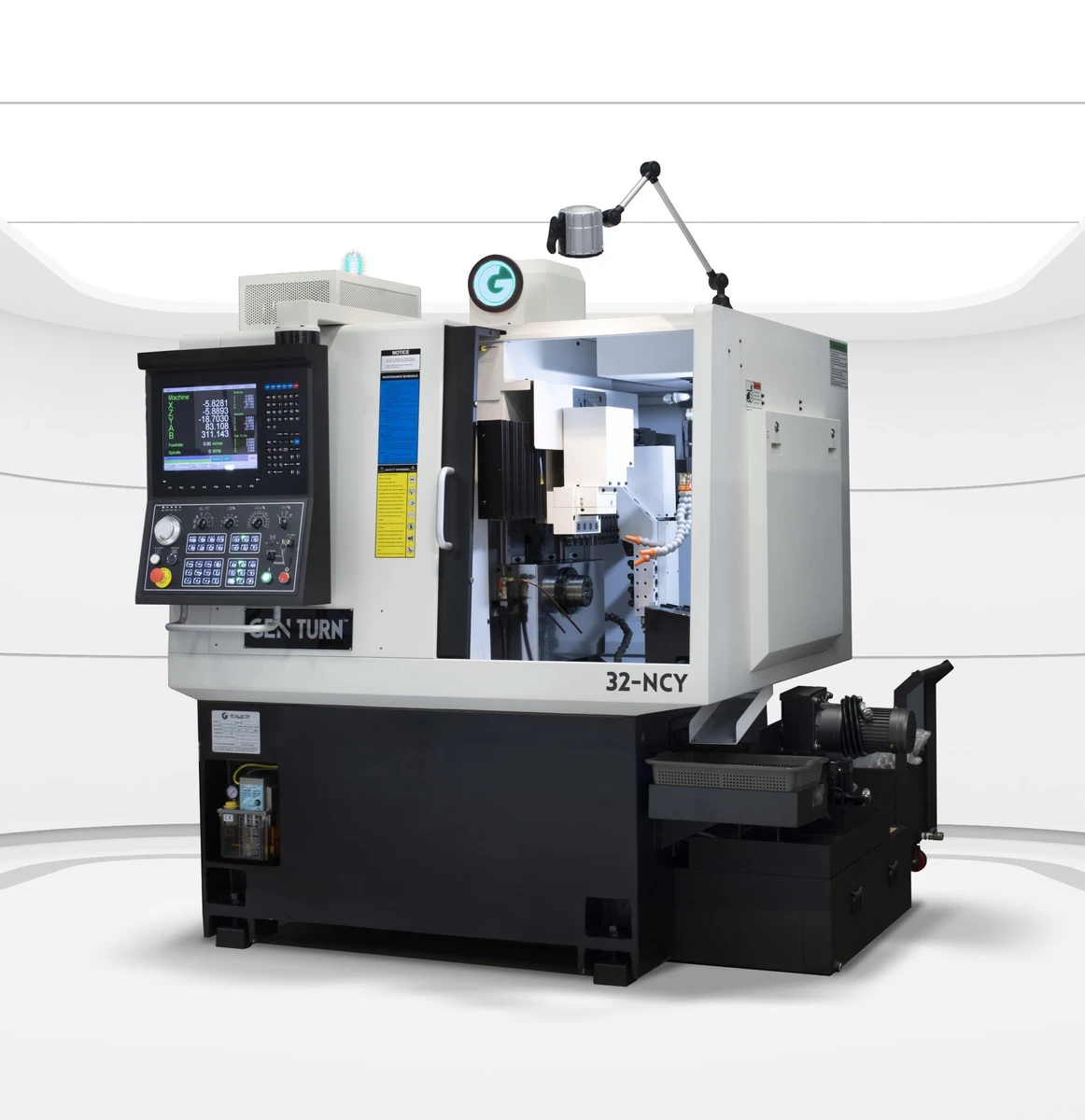

New EXPAND MACHINERY GenTurn 32 NCY | CNC Metal Lathes

AXIS TRAVELS
CNC Controlled Axis # 4-Axis (X, Y, Z, C) with High-Performance C-axis
X-Axis Travel (Vertical Tool) Inch 7.5” (190 mm) Linear Ways
Y-Axis Travel (Cross Tool) Inch 19.3” (490 mm) Linear Ways – True Y-axis
Z-Axis Travel (Sliding Headstock Inch 6.5” (165 mm) Linear Ways
C-Axis Travel (Rotational Axis) Degrees 360 degrees (360,000 radial positions)
SPINDLE
Spindle Bore Inches 1.456” (37 mm)
B&S #22 or Traub A-32 Collet Inches 1.25” (32 mm), 1-3/8” (36 mm) collet adapter available
Spindle Speed Range RPM 100-6,000 RPM
Spindle Horsepower HP 10-HP 3,000 RPM Spindle Motor (2:1 Pulley Ratio)
Spindle Center Height Inches 38” (965 mm)
Rigid Tapping on Main Spindle Yes
Spindle bearing (Ø110 mm) 5-ball bearing spindle, 3-front & 2-rear bearings
TOOLING SYSTEM
Number and size of turning stations # 6 Tools of ½” or 12 mm (5 stations of 5/8” Optional)
Number of Internal Static Tools # 5 ID tool stations (25 mm bores) for tool bushings/ collets
I.D. Tool Bores (Round Shank) M 25 mm bore for ER-20 collet, split or solid tool bushings
DRIVEN TOOL SYSTEM
Number of cross working driven tools # 4-cross driven tool stations with ER20 collet holders
Number of end working live tools # 3-axial driven tool stations with ER20 collet holders
Size of driven tools (round shank) Inch ER-20 collet capacity (1/16” – ½”) (1-13 mm) diameter
Rigid Tapping with Driven Tools Included for main spindle and driven tools
Driven Tool programmable range RPM 0-4,000 RPM – step-less speed range
Driven Tool HP HP Radial 2.0-HP(1.5 kw), Axial 1.0-HP (0.75 kw)
AXIS DRIVES
Rapid Travers Rate – X, Y, & Z axis IPM 1,181 IPM (30 m/minute)
Maximum federate for thread cutting IPM 236 IPM (6 m/minute)
Minimum Programmable Input Inch 0.0001” (0.001 mm = 40 millionths of an inch)
C-Axis Resolution Degrees 0.001 degree (360,000 Radial Positions)
Brushless AC Servo Motor Drive HP X = 2-HP (1.5 kw), Y&Z = 1.5-HP (1.0 kw)
Ballscrew diameter Mm 25 mm diameter – 10 mm pitch double-nut ballscrews
SYSTEM REQUIREMENTS
Electrical Requirements KVA 16 KVA – 42 amps @ 220 vac ±5% 3-Phase
Pneumatic Requirements 85 psi @ 10-cfm for parts catcher and spindle brake
Hydraulic System Capacity Gallons 10-gallon (40 liter) hydraulic tank, 500 psi pressure
Coolant Pump Motor/ Tank Capacity HP ¾ HP w/ flow sensor / 50-gallon tank with dual filtration
Automatic Metered Lubrication system 3-6 cc/15-minute (adjustable lubrication flow rate)
MACHINE DIMENSIONS
Floor Space – L x W x H Inch 86” x 74” x 76”
Machine Spindle Center Height Inch 38” (965 mm)
Machine Net Weight Pounds 6,172 lbs. (2,800 kgs)
Note: SPECIFICATIONS AND PRICING IN THIS DOCUMENT ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE
