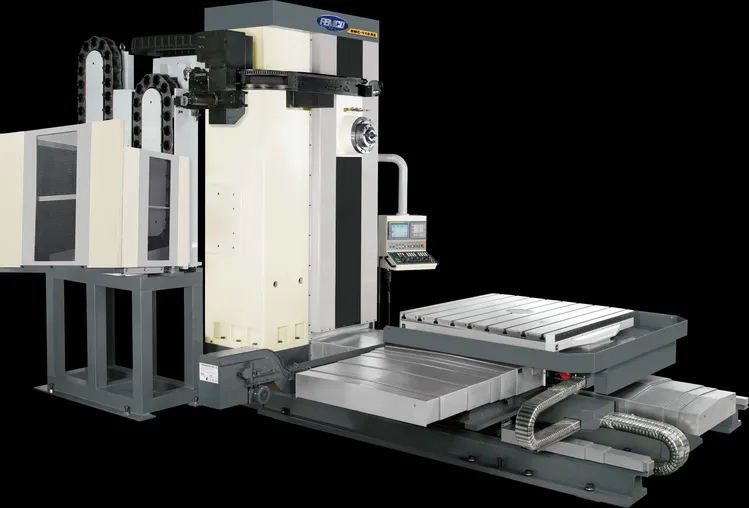

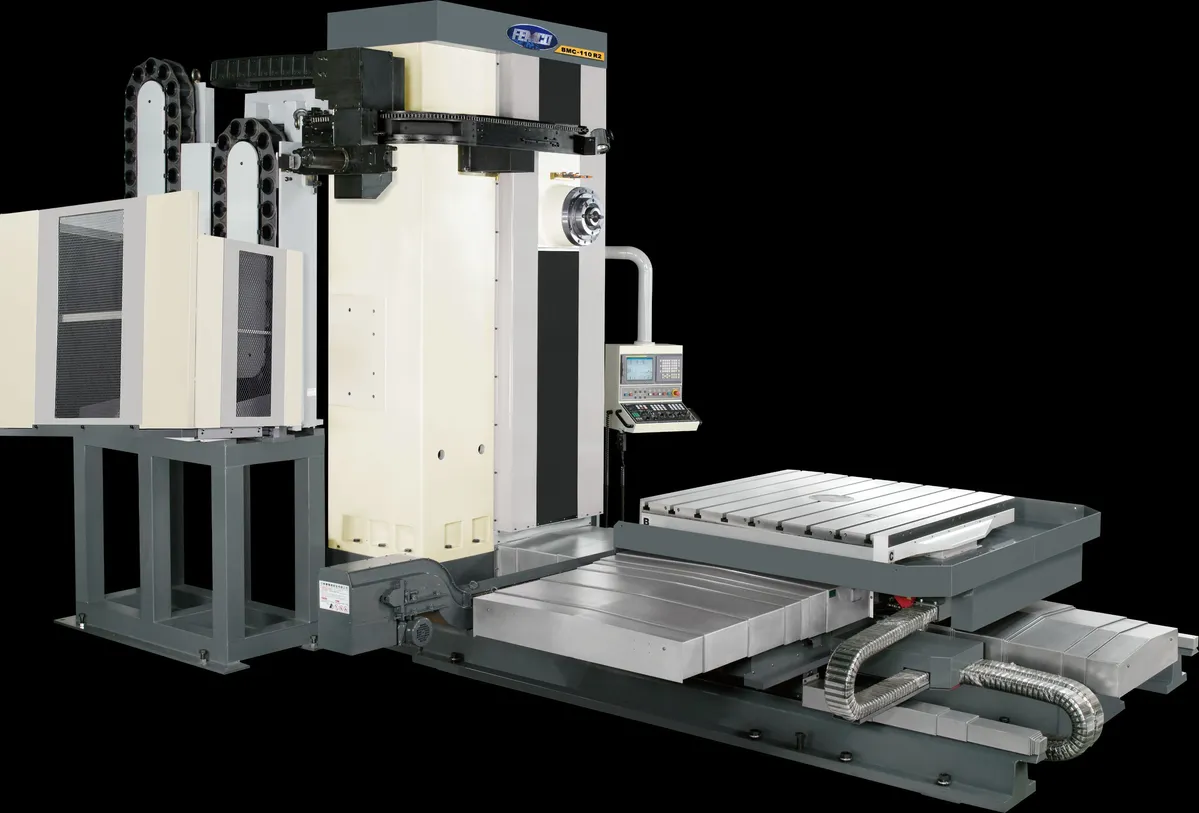

New FEMCO BMC-110R2 | Horizontal Table Type Boring Mills

SPECIFICATIONS:
Travel:
Table Cross Travel (X-Axis) 78.74”
Headstock Travel (Y-Axis) 70.87”
Table Longitudinal Travel (Z-Axis) 64.96”

Table:
Table Size 56.69” x 62.99”
Table Load 13,889 Lbs

SPINDLE:
Bar Diameter 4.33”
Stroke (W-Axis) 19.69”
Taper ISO #50 with Power Operated Drawbar
Tool Shank CT50
Milling Spindle Diameter 8.86”
Pull Stud (Option MAS-I) MAS-II 60 deg
Motor (Continuous/30 min Rated) AC 22/26 KW (29.5 / 35 HP)
Speed Ranger-Low Stepless 5 to 454 RPM
Speed Ranger-High Stepless 455 to 2,500 RPM
Automatic tool changer (ATC)
Tool Storage Capacity 60 ATC Standard, 90 ATC Optional
Max. Tool Diameter (Adjacent Pods Full) 4.72”
Max. Tool Diameter (Adjacent Pods Empty) 9.84”
Max. Tool Length 15.75”
Max. Tool Weight 55 Lbs
Tool to Tool Exchanging Time 15 sec
Tool Selection Method: Automatic Selection of the Shortest Route

Positioning Servo Motor:
X-Axis 8.0 hp
Y-Axis 9.4 hp
Z-Axis 8.0 hp
W-Axis 5.4 hp
B-Axis (Rotary table) 5.1 hp
Feed Rate in all Axes 0.2 - 157.7” /min (stepless)

Control:
Positioning Accuracy X, Y, Z, and W-Axis 0.025/300mm(0.001”/11.81”) Repeatability X, Y, Z, and W-Axis ±0.01mm( ±0.0004”)
Control Axes 5
W-Axis 4
Rapid Traverse Rate: X-, Y-, Z-Axis 394 IPM
W-Axis 157 IPM
Rapid Rotation of Rotary Table 0.72 RPM

Machine Dimensions and Net Weight:
Height (Standard) 147”
Floor Space 308” x 244”
Net Weight 41,887 Lbs

Power Requirements: 220 Volts 3 Phase 60 Cycle, 200 Amps,
440 Volt Transformer on Request.
