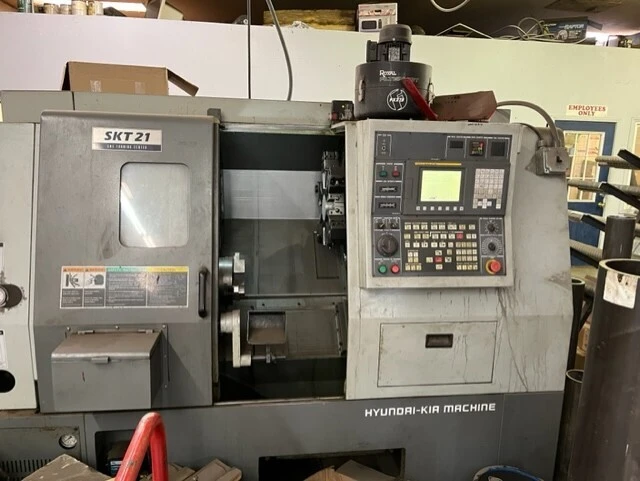

Used 2007 HYUNDAI KIA SKT-21 | CNC Lathes

Control:
FANUC 21i-TB
Swing over the cross-slide:
350mm
Bar capacity:
65mm
Maximum cutting diameter:
255mm
Maximum cutting length:
530mm
Swing:
550mm
Tailstock body travel:
550mm
Tailstock taper:
MT #4
Turret positions:
12 Station
Rapid feedrates:
30m/minute
Spindle motor power:
15/11kW
Spindle nose:
A2-6
Spindle speed:
4000rpm
Boring bar holder diameter:
40mm
Milling motor power:
3.7kW
Milling rpm:
4000rpm
Tool size:
25 x 25mm
Tooling configuration:
VDI 40
X axis travel:
210mm
Z axis travel:
550mm
Machine dimensions:
4165 x 1650 x 1870mm
Machine weight:
4300kg
